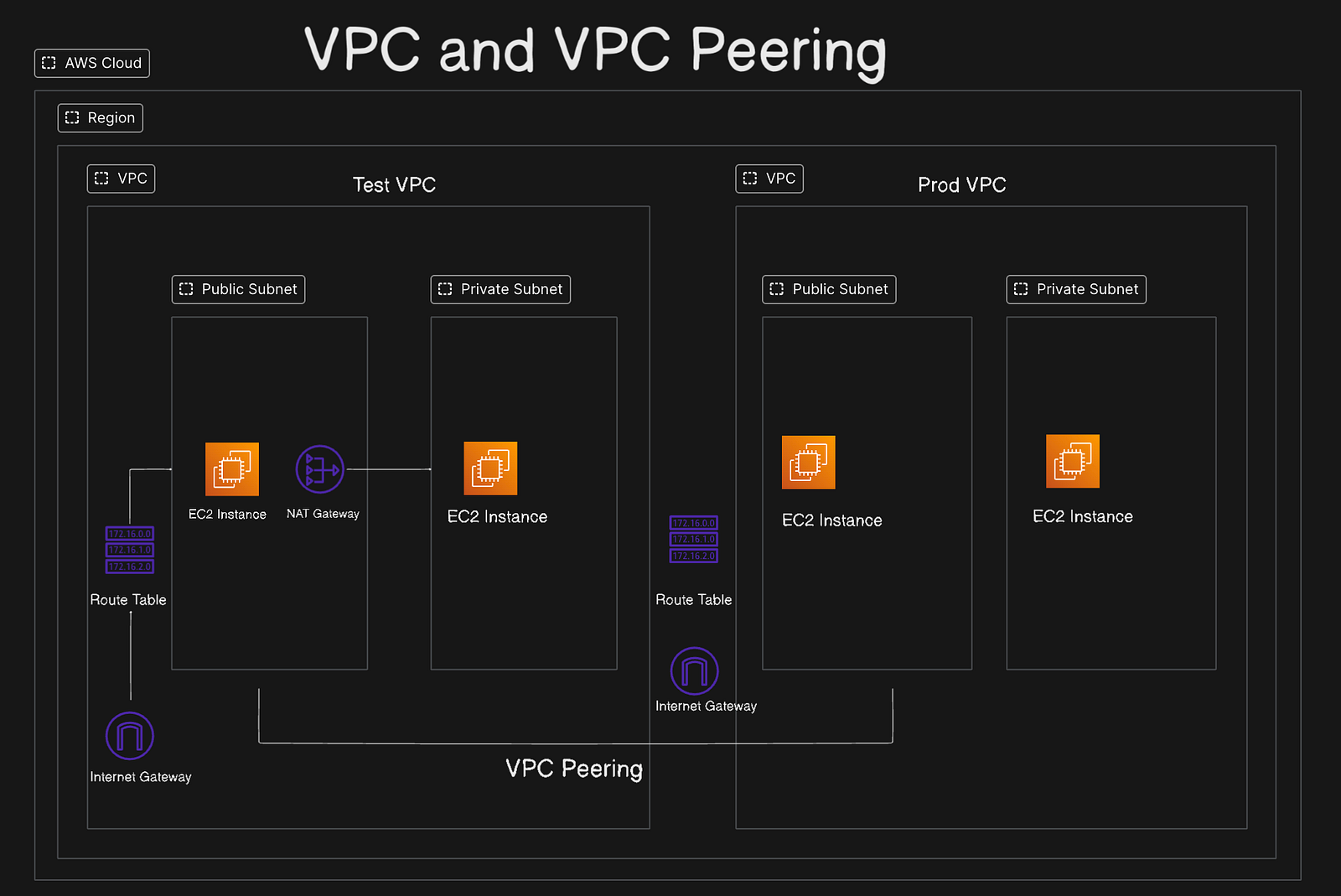

Let’s understand what is VPC and VPC peering, difference between them and why is VPC essential for Cloud and DevOps Engineer.
Understanding VPC, Subnets, and Internet Access in AWS
When working with cloud infrastructure on Amazon Web Services (AWS), understanding the Virtual Private Cloud (VPC) and its networking components is crucial. Whether you’re launching EC2 instances or setting up a secure environment for your application, having a solid grasp of VPCs, subnets, route tables, and gateways will help you manage your network securely and efficiently.
VPC (Virtual Private Cloud)
What is a VPC?
Means our own cloud, resources will run on a network and that network will be isolated (to control incoming and outgoing traffic/request)
It’s logically isolated from other AWS accounts.
You control IP address ranges, subnets, route tables, and gateways.
You decide how traffic flows in and out of your cloud.
Subnet
What is a Subnet?
Subnets we can say smaller network within a larger network in which we can launch resources like EC2 instances. It helps to divide IP networks. It allows you to group and launch resources in specific availability zones.
You can have multiple subnets in a VPC (e.g., public and private).
They enhance security by isolating traffic
Internet Gateway & Route Tables
An Internet Gateway is a component that allows communication between your VPC and the internet.
The Internet Gateway is not attached directly to a subnet.
Instead, we use a Route Table to route traffic from a subnet to the Internet Gateway.
Subnet + Route to IGW = Public Subnet
Subnet without a route to IGW = Private Subnet
NAT Gateway
It is created in public subnet to give internet access to instances in private subnet.
- But it blocks inbound traffic from the internet, keeping the private subnet secure.
Route Table
Routes traffic within and outside the VPC

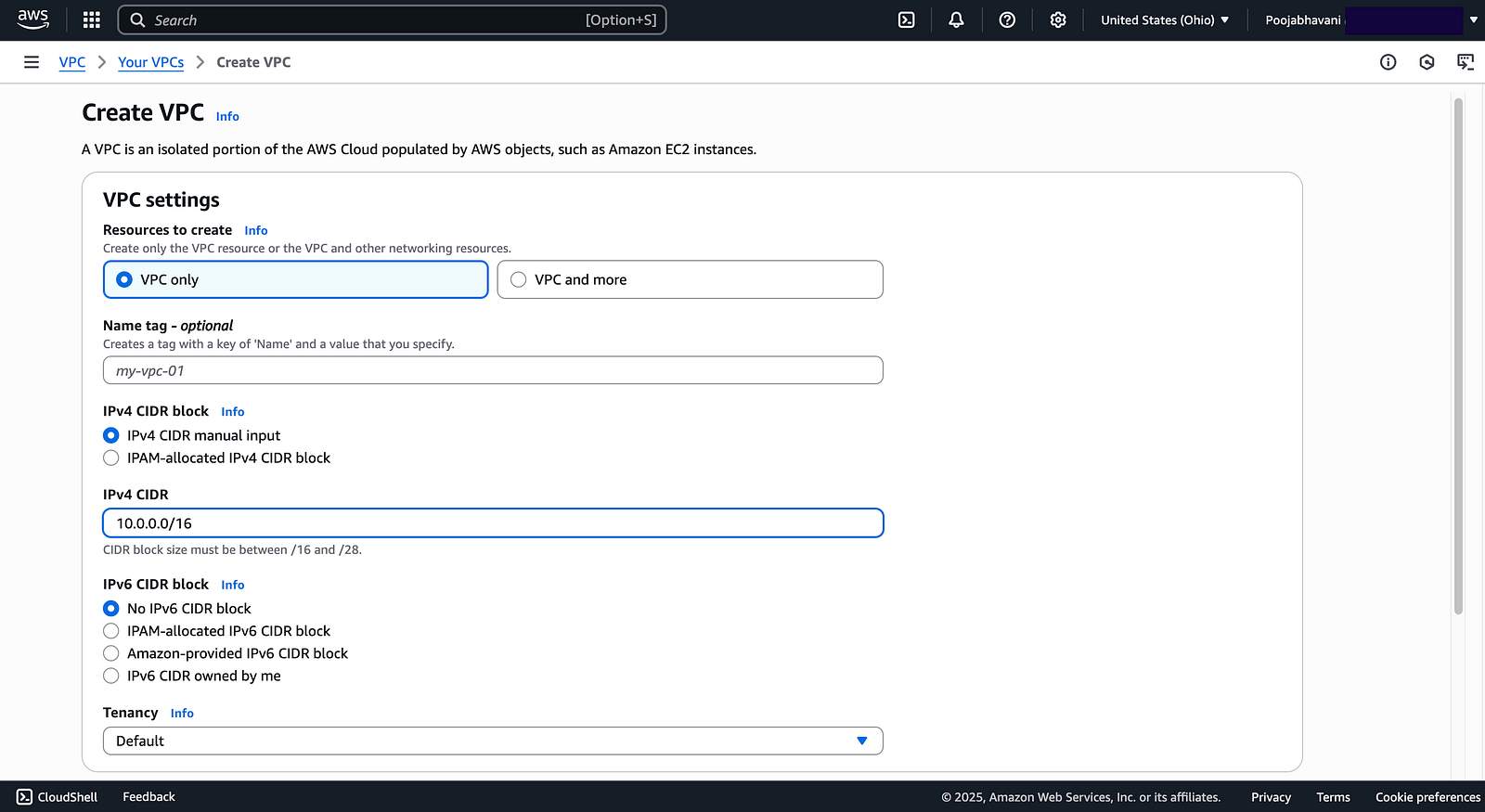

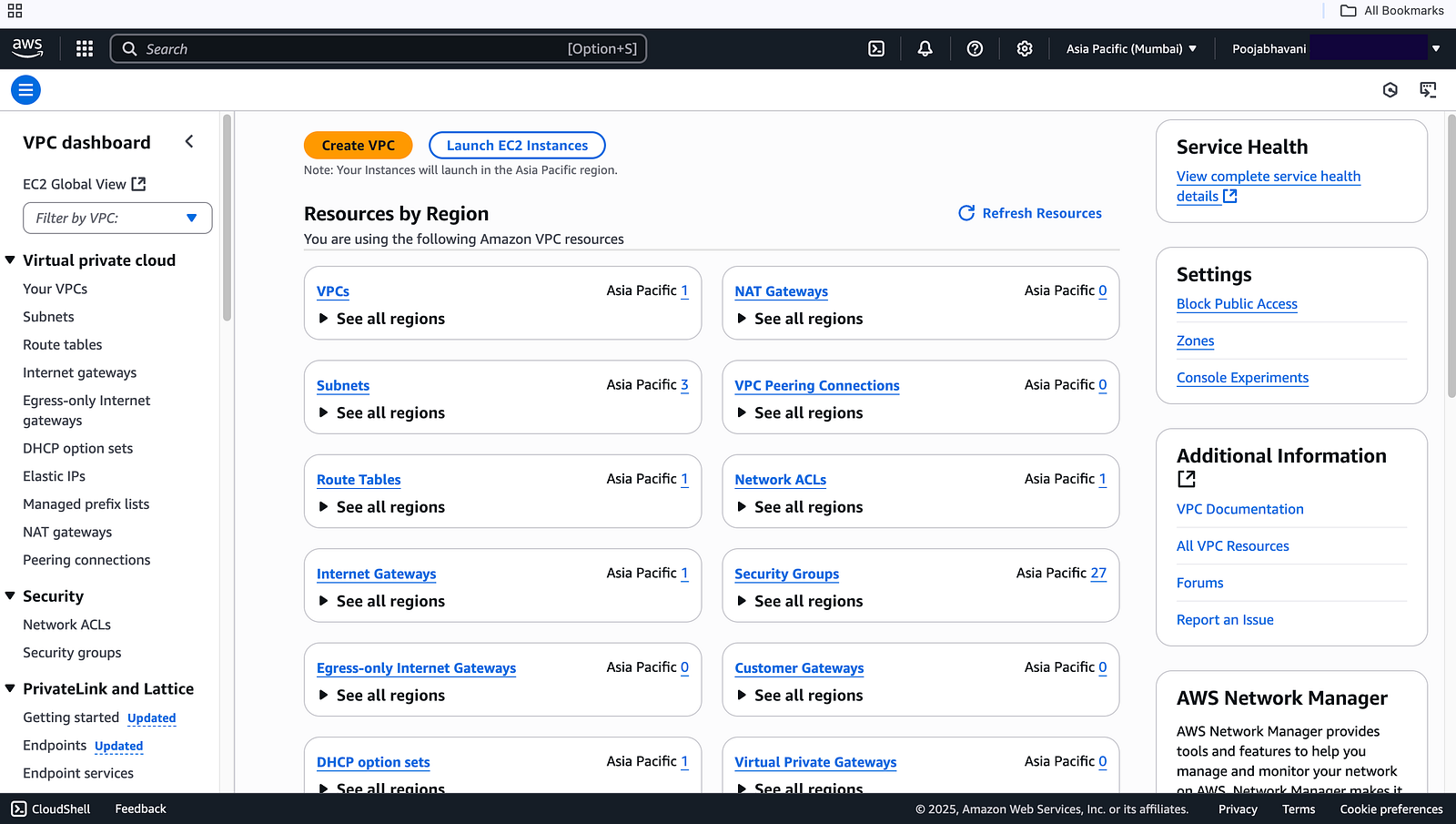

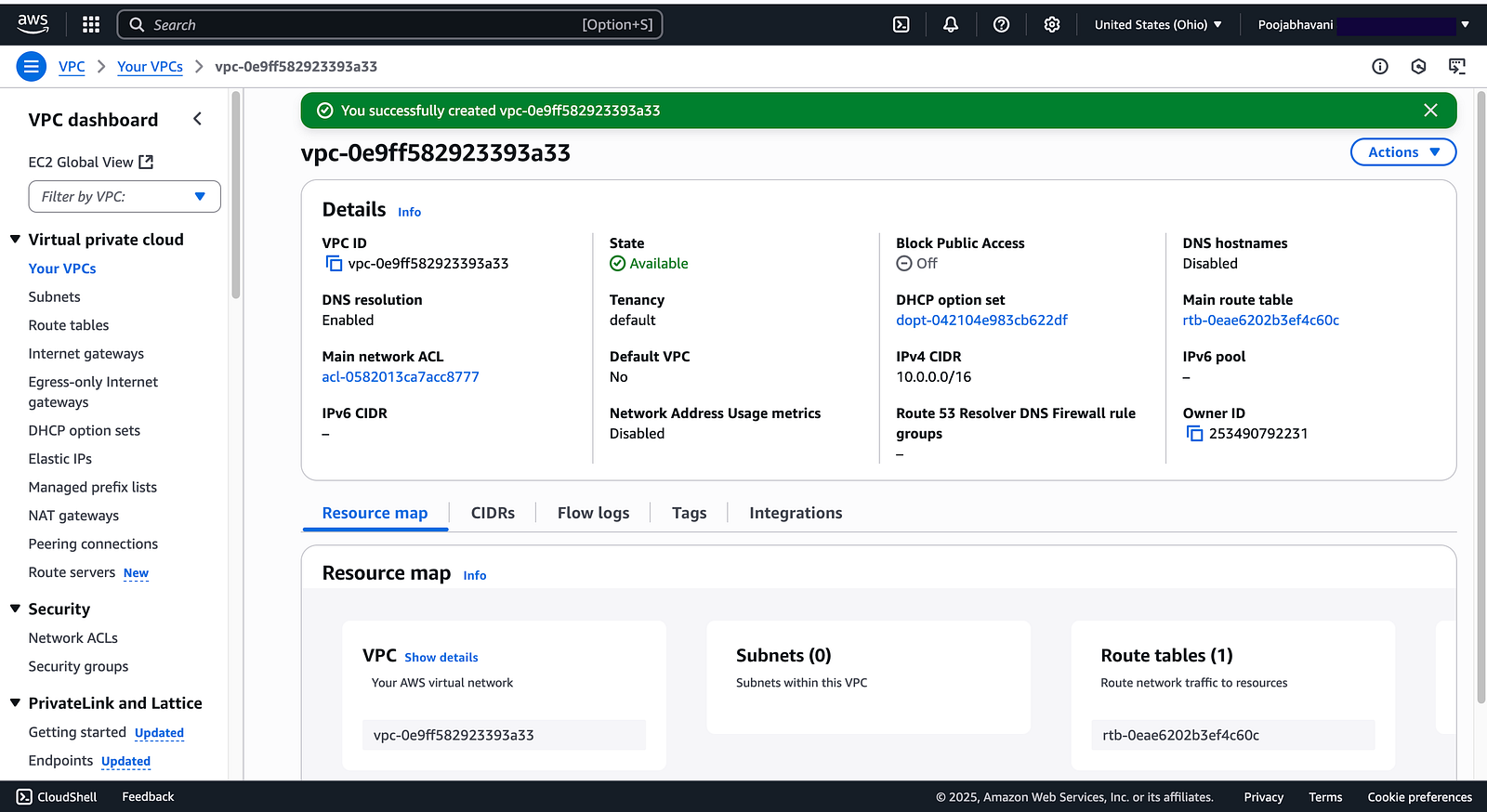

Test VPC Creation

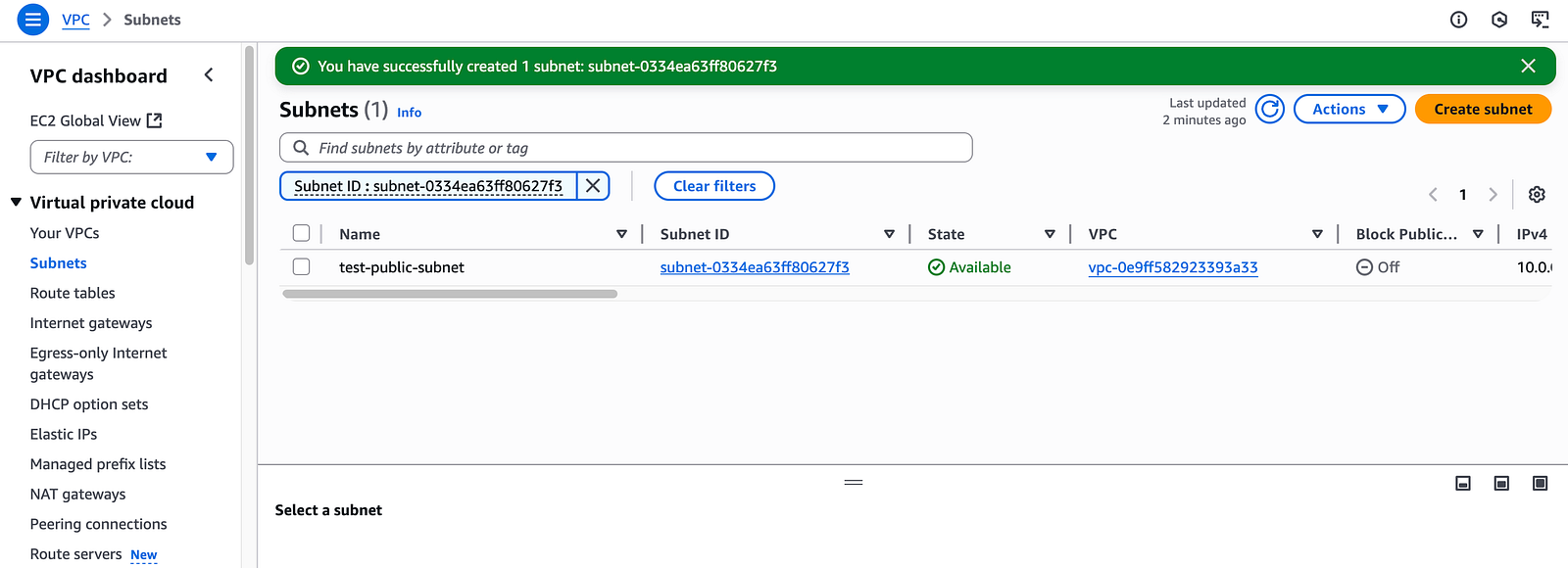

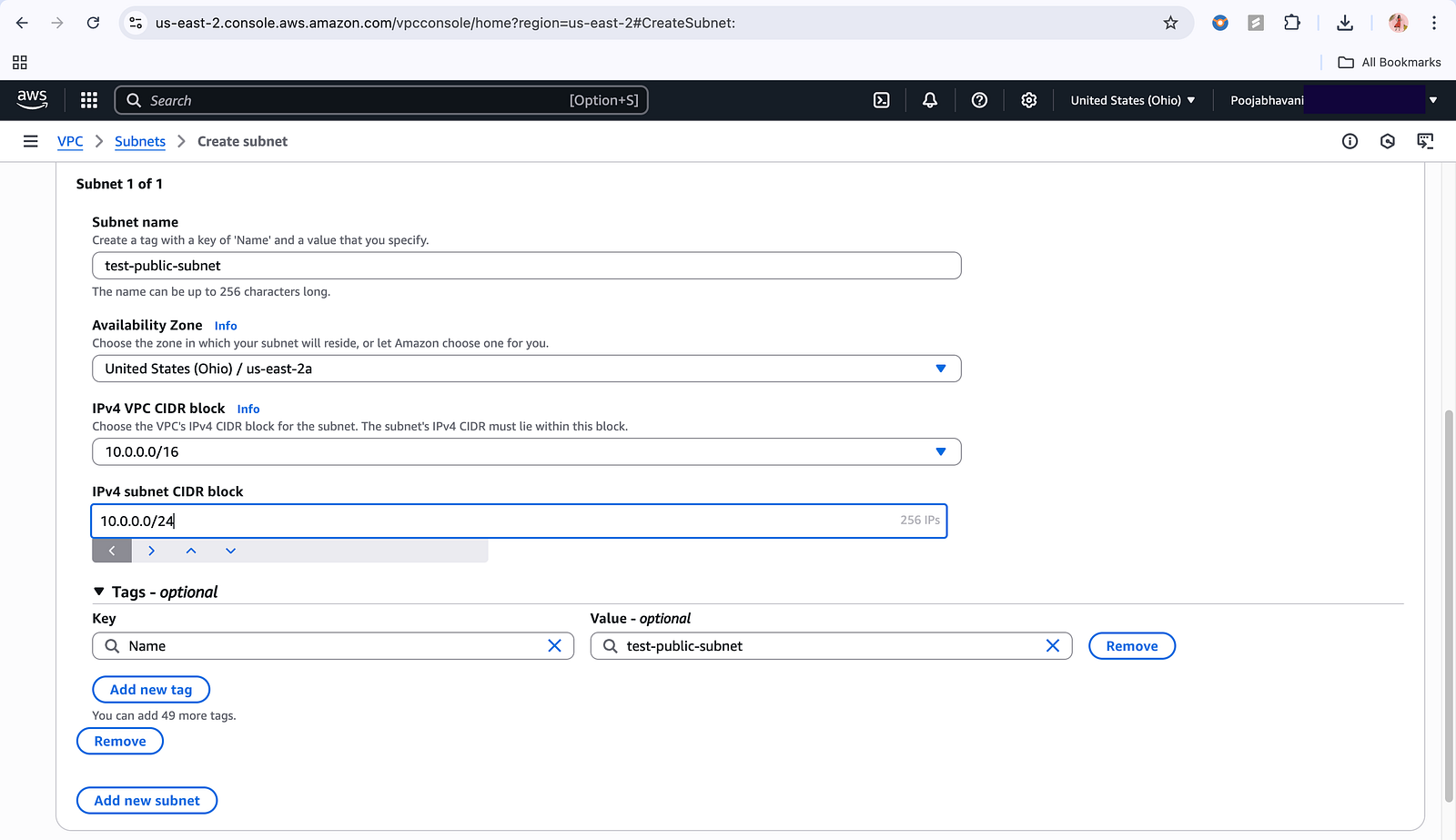

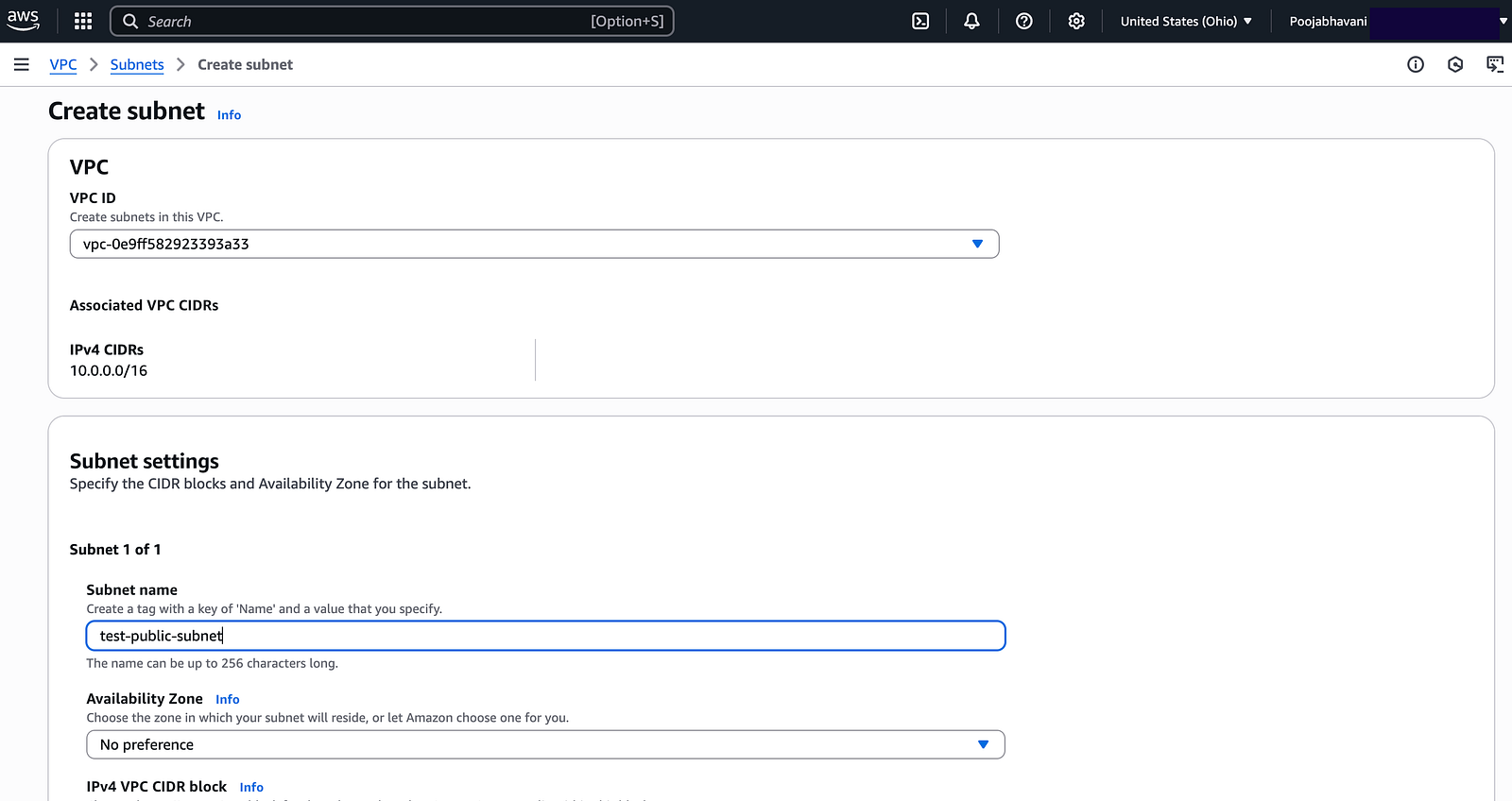

Subnet Creation

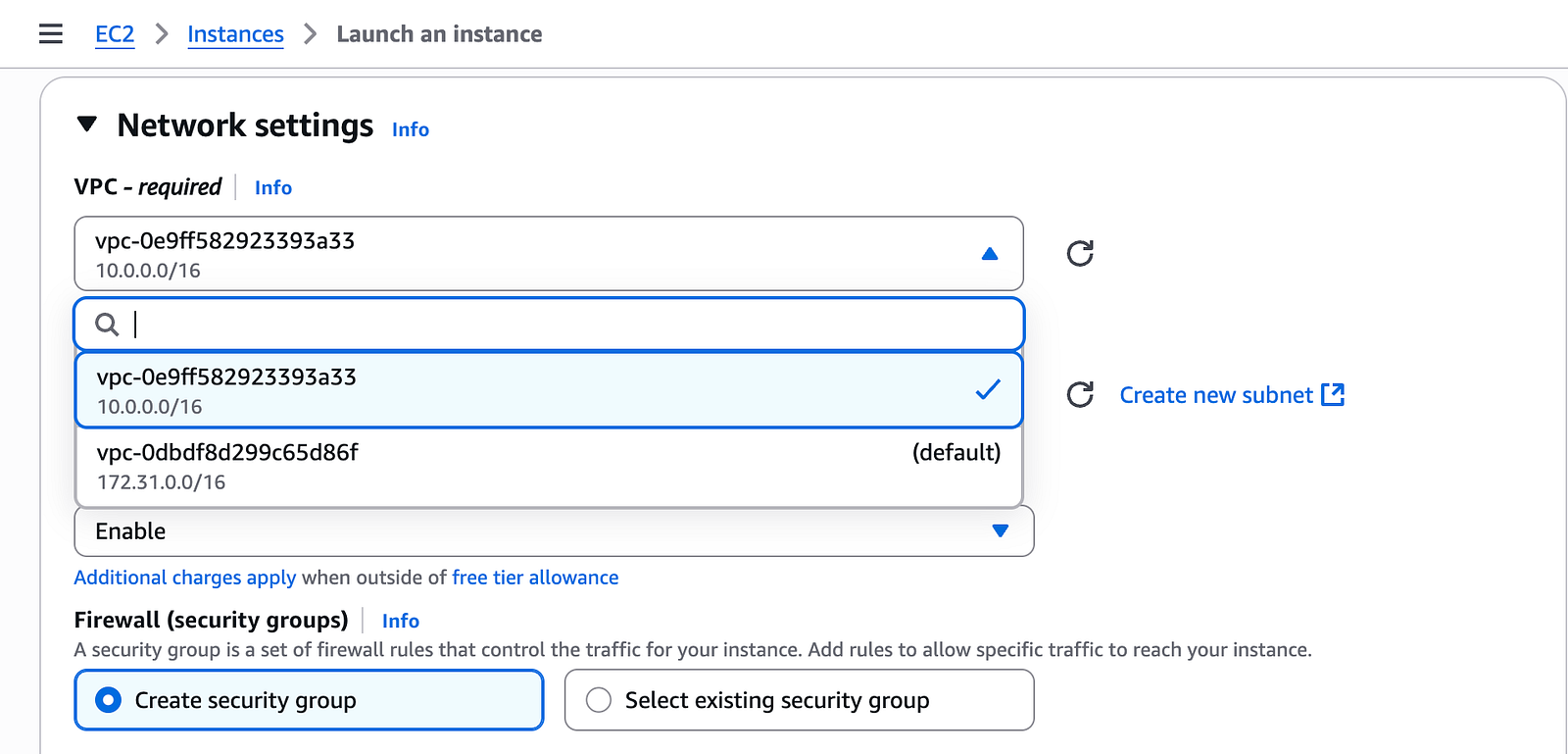

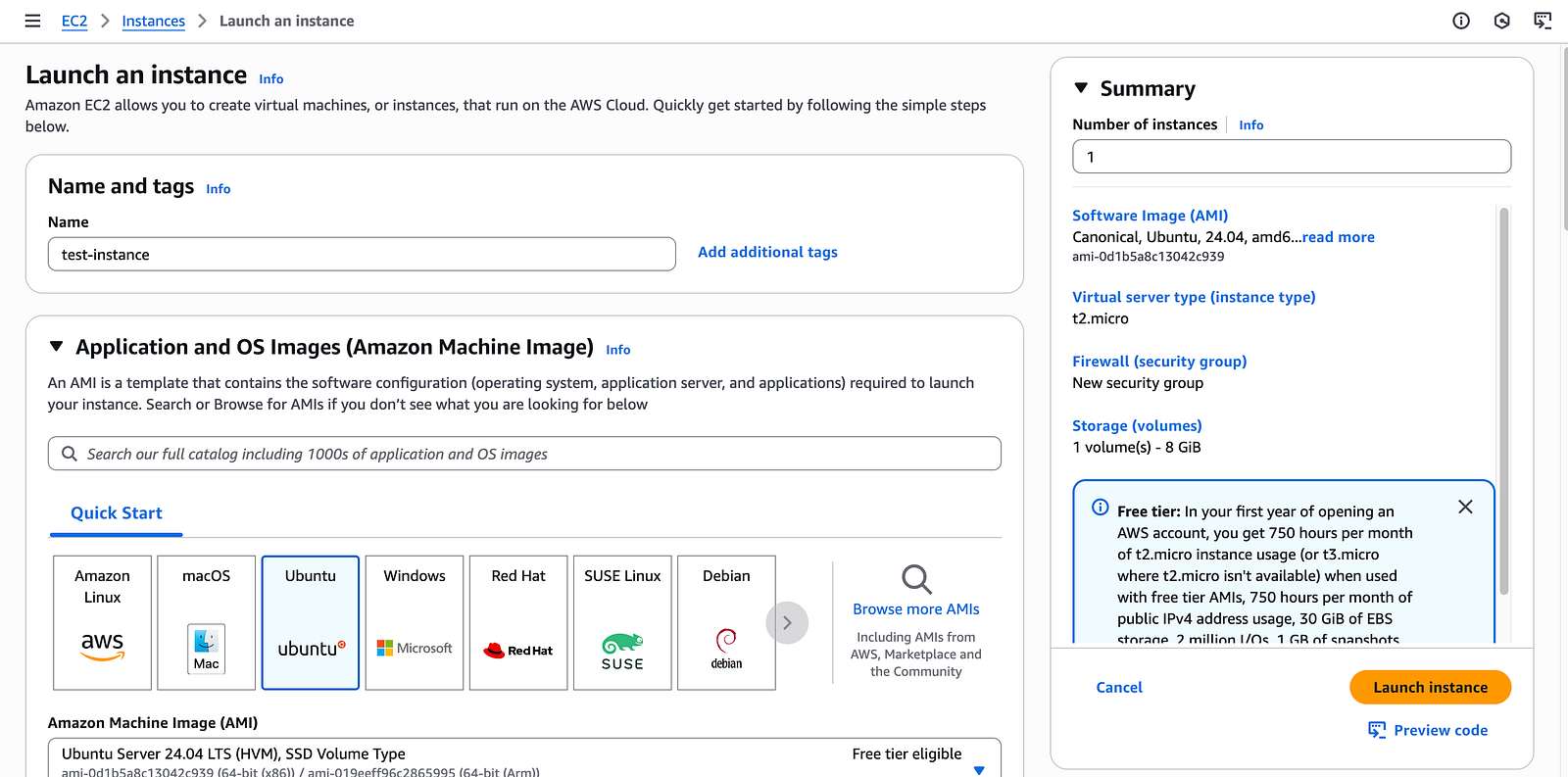

Created and EC2 Instance and attached it to test-vpc

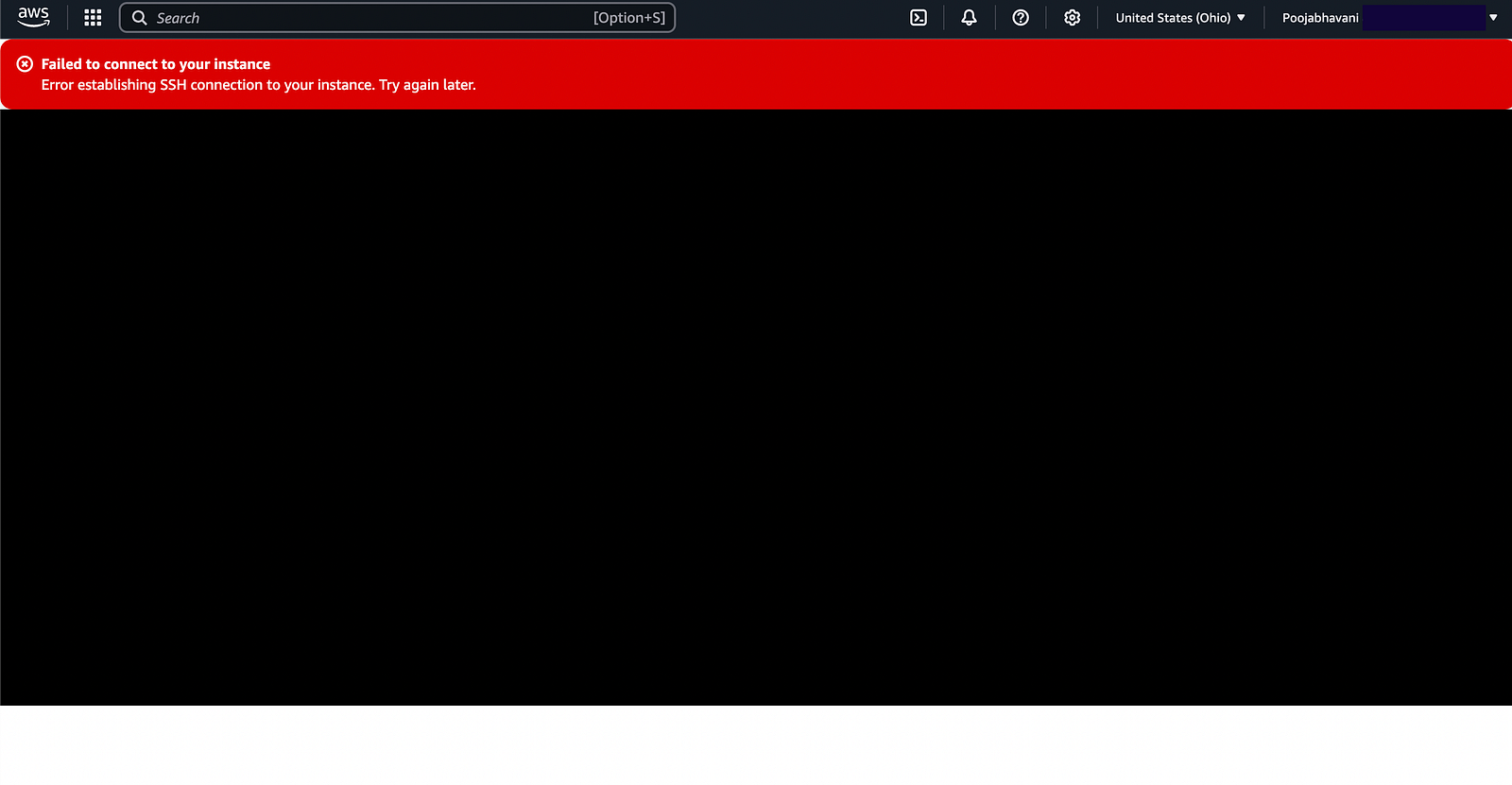

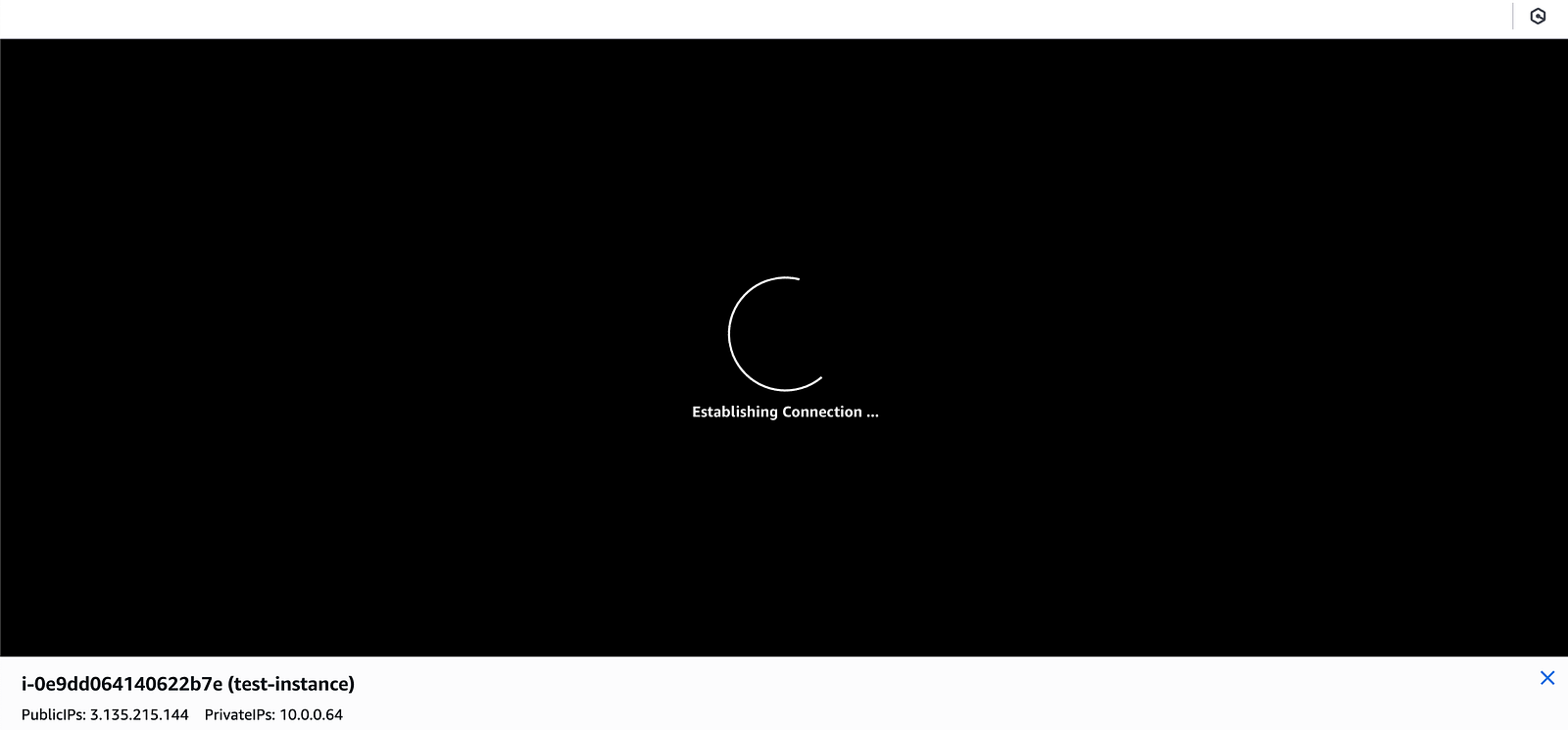

Failed to establish because it is isolated and has no internet so this is known as private Subnet
To make it Public Subnet we need to attach Internet Gateway and Route Table

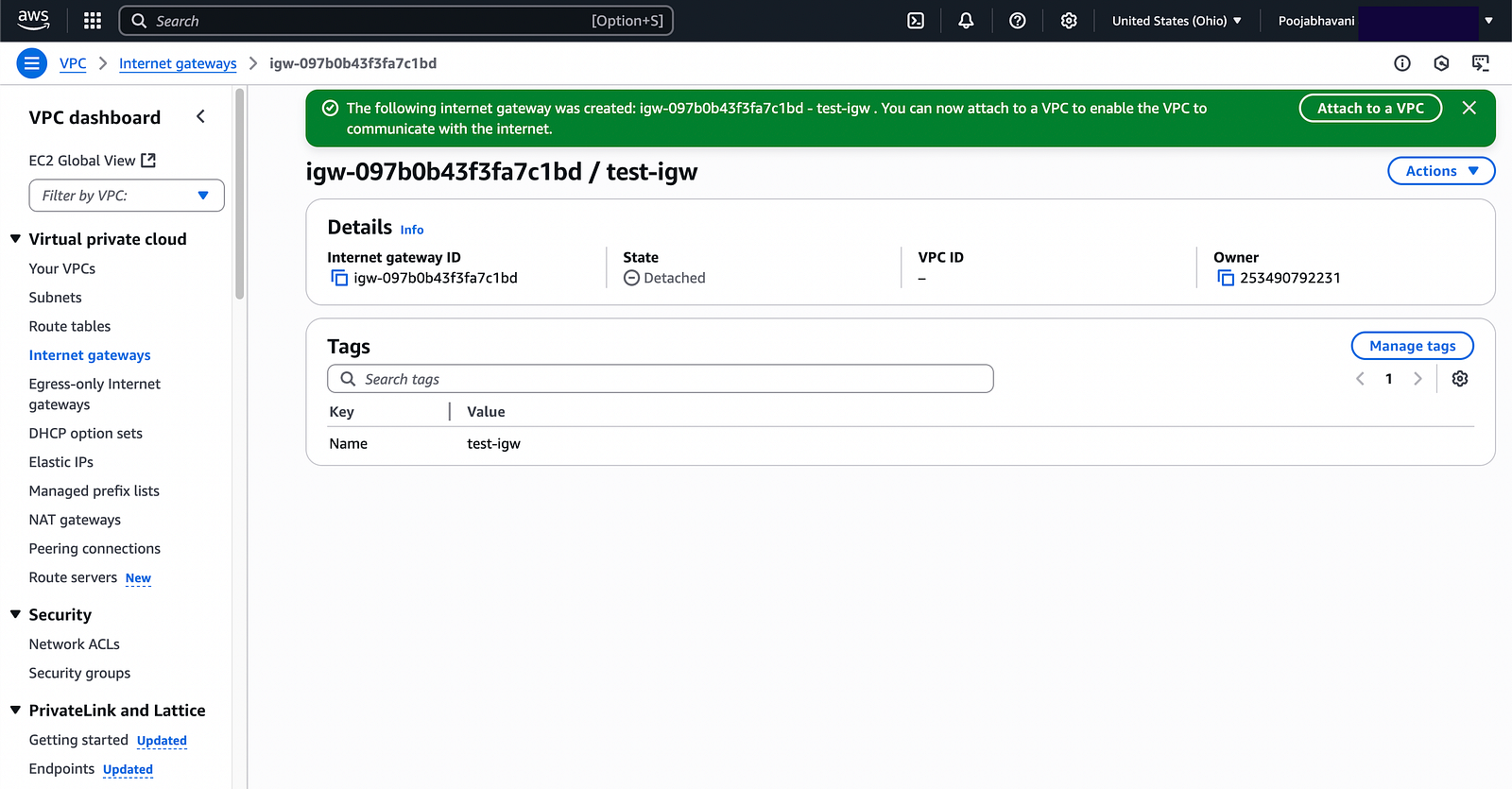

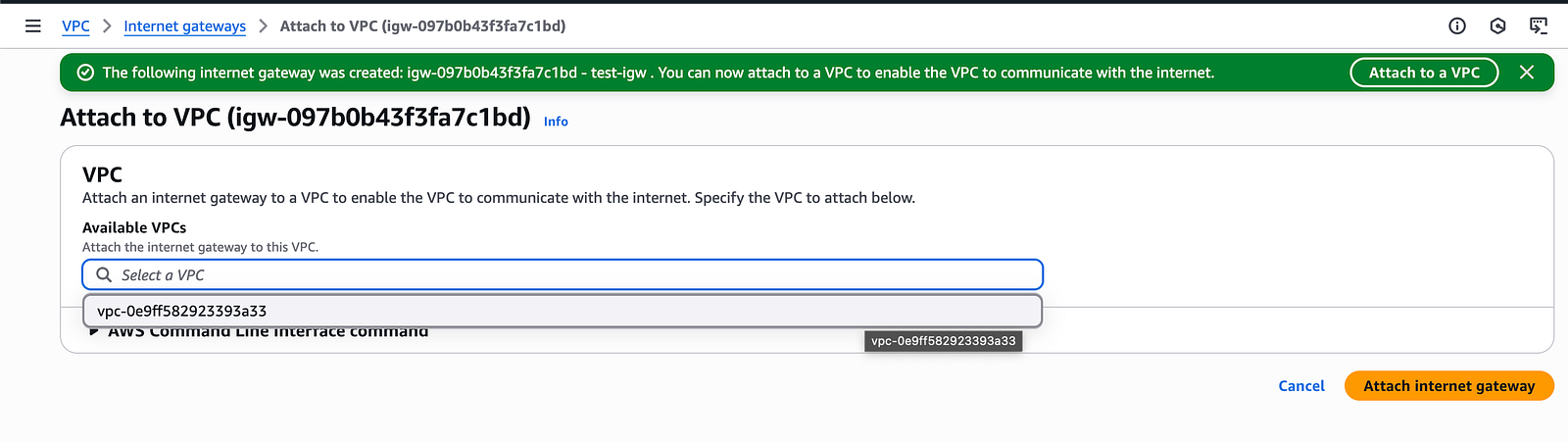

Internet Gateway- is used to allow Internet Access

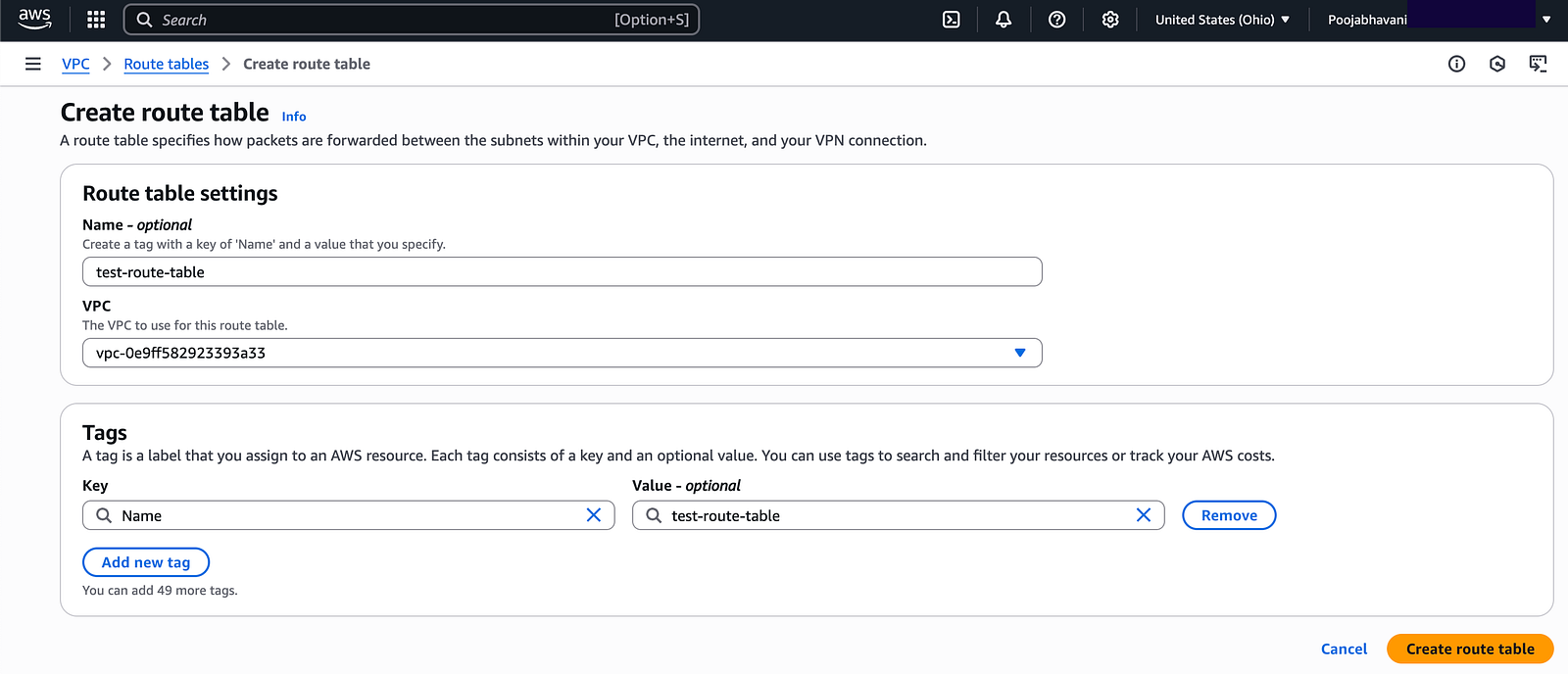

Route Table

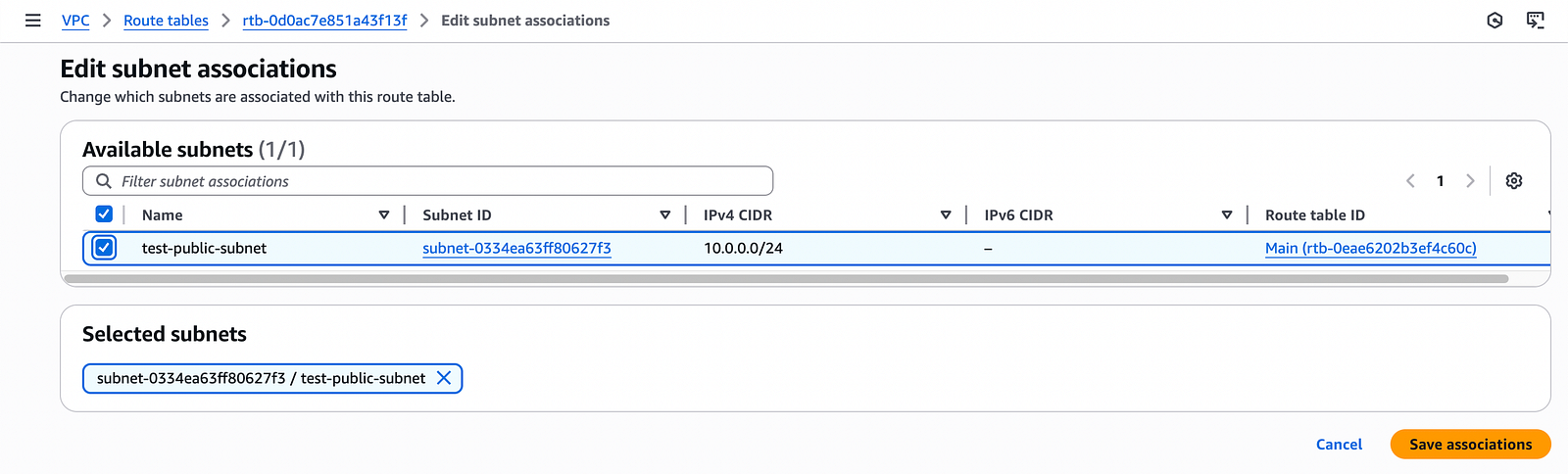

In this step the Route Table is attached to our Public subnet

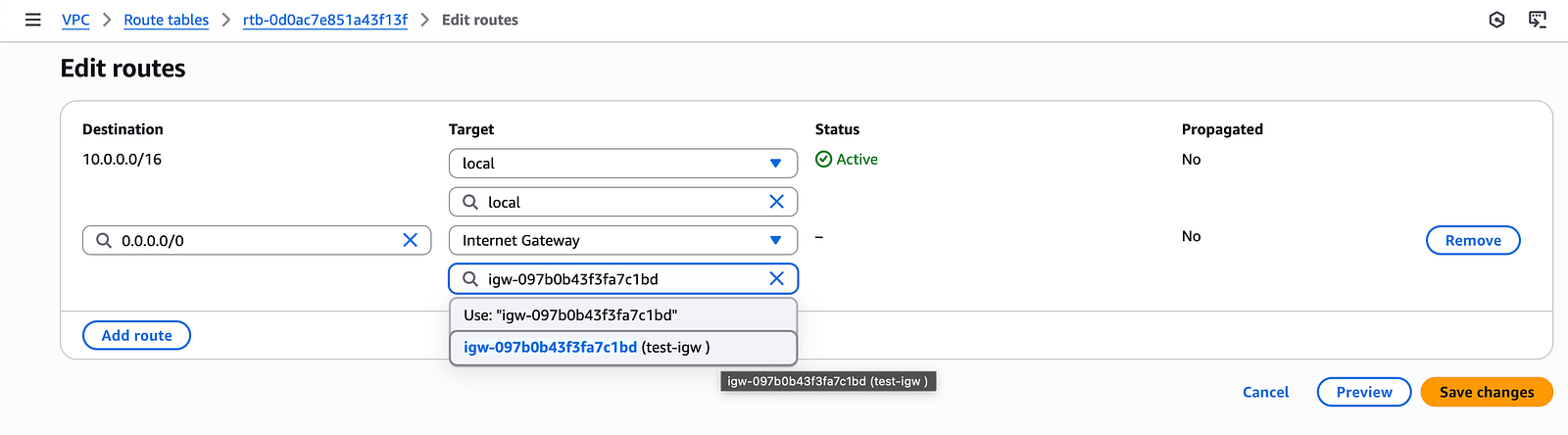

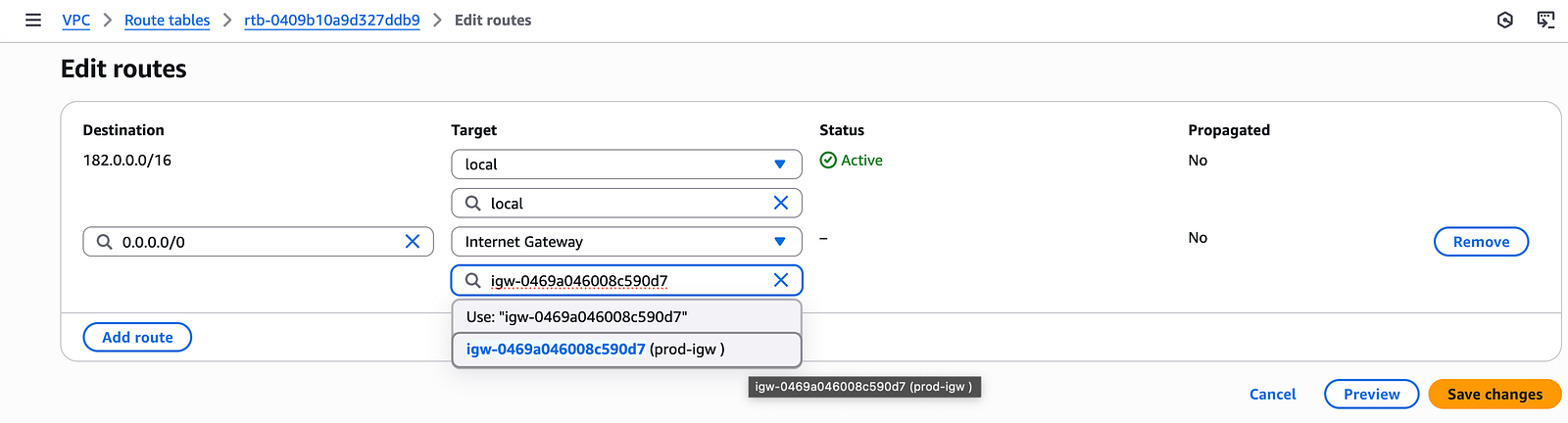

Now edit the route table and put a route which will be attached to internet gateway
This means in our VPC now we have Internet Gateway, Route Table and Public Subnet and all of them are attached

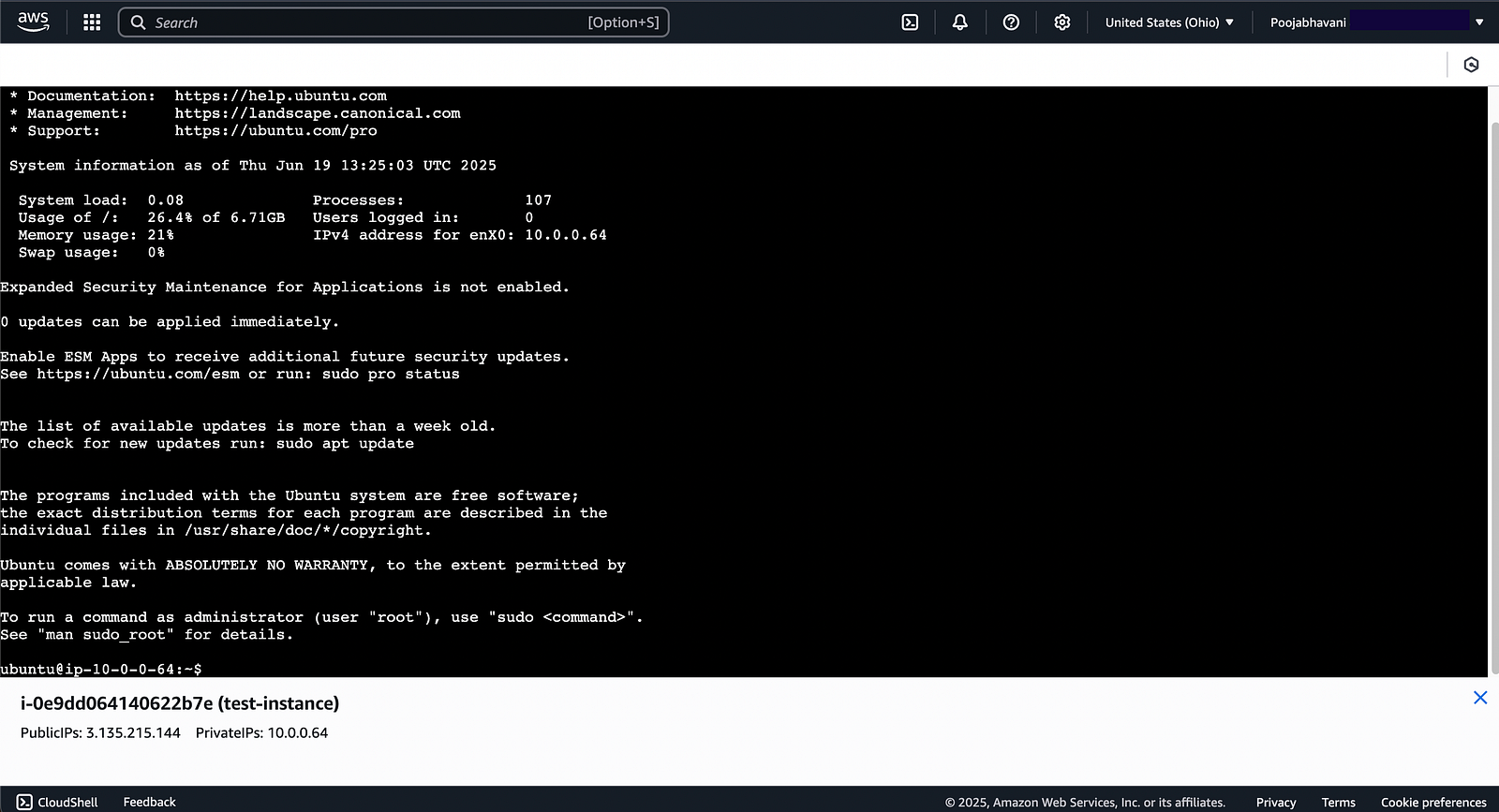

Now if I try to connect my EC2 Instance it will get connected because now it has internet access
And if you want to restrict internet access to the subnet just edit the route table and remove the internet route

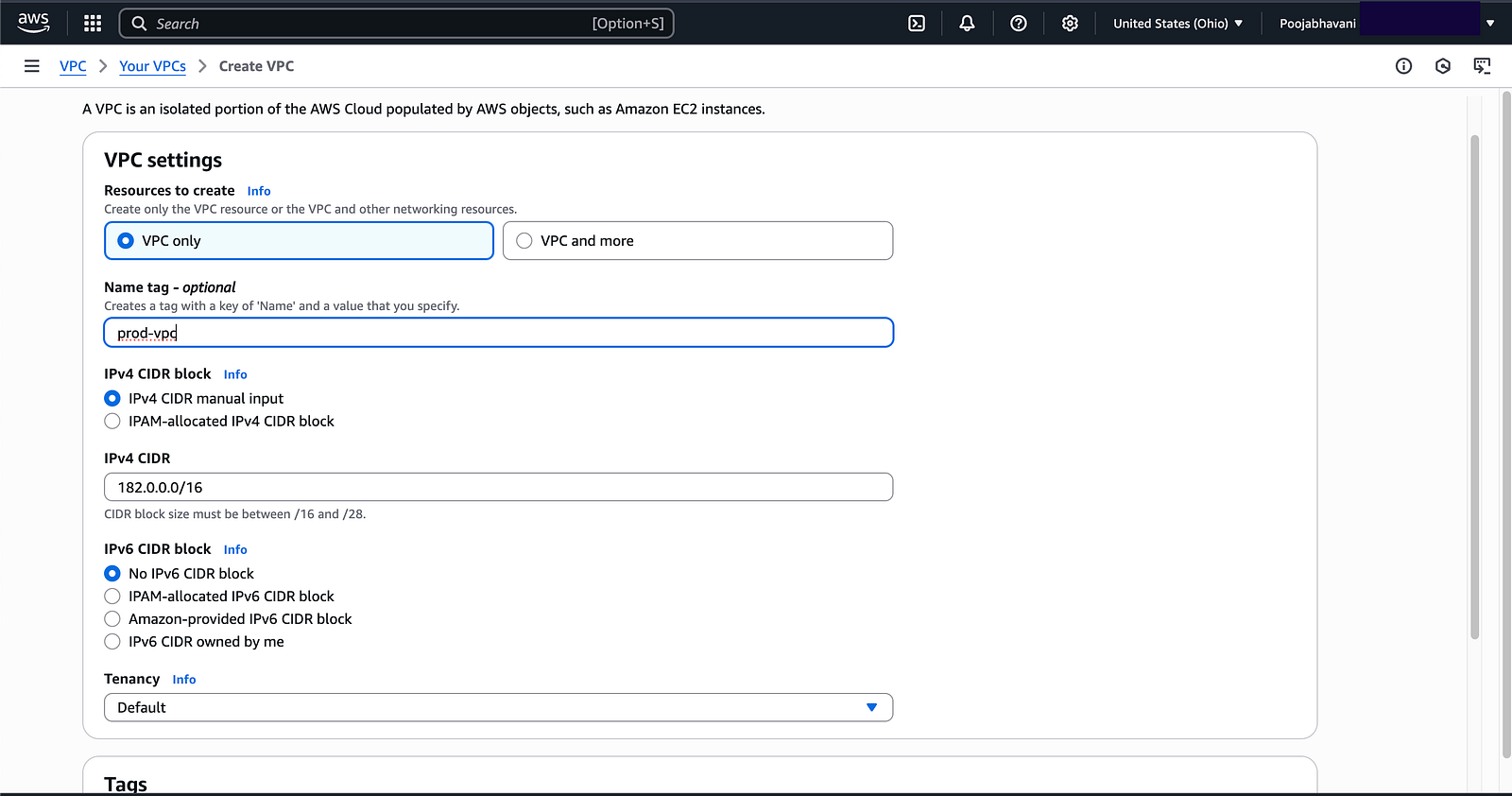

Prod VPC Creation

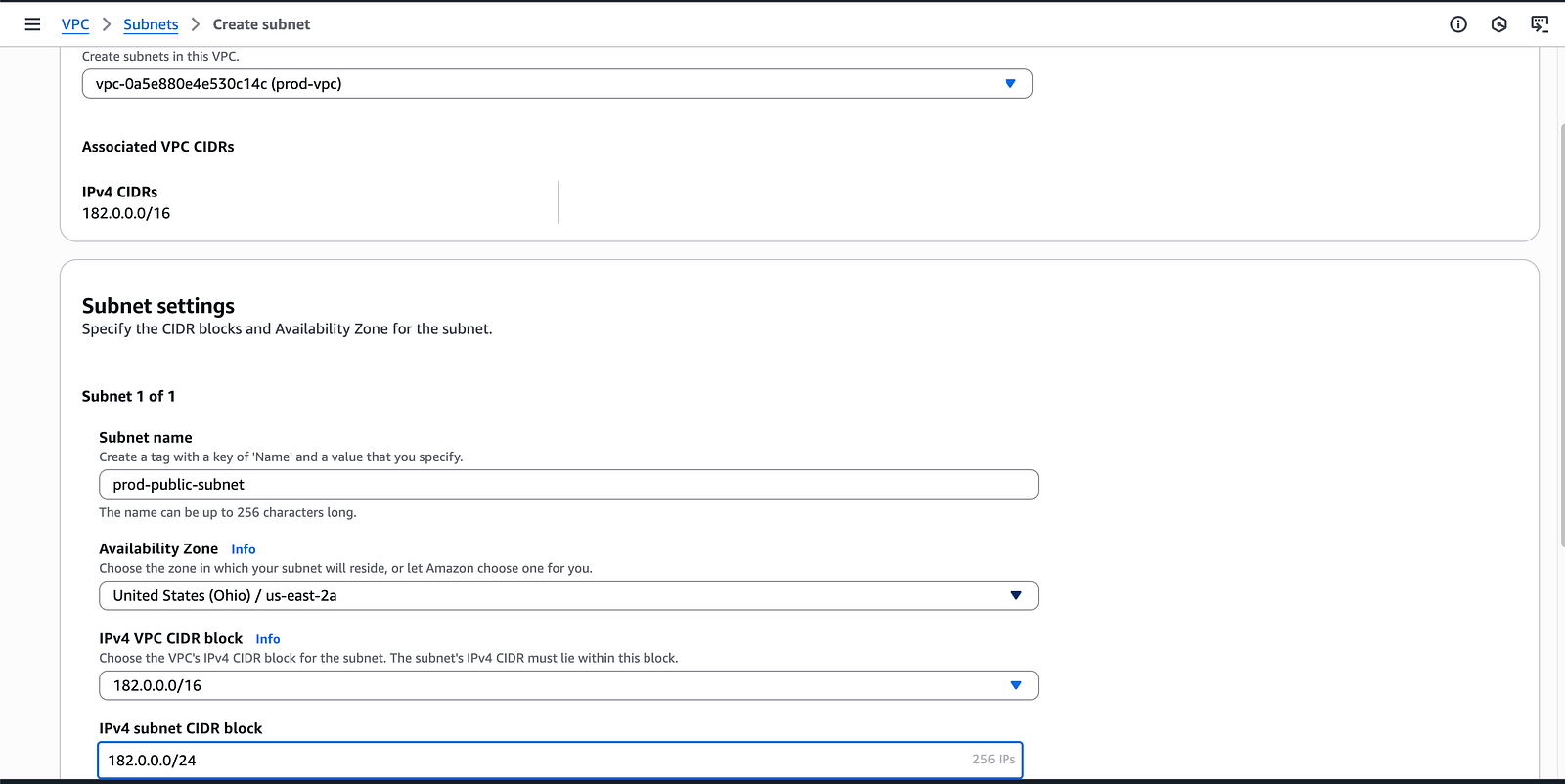

Subnet Creation

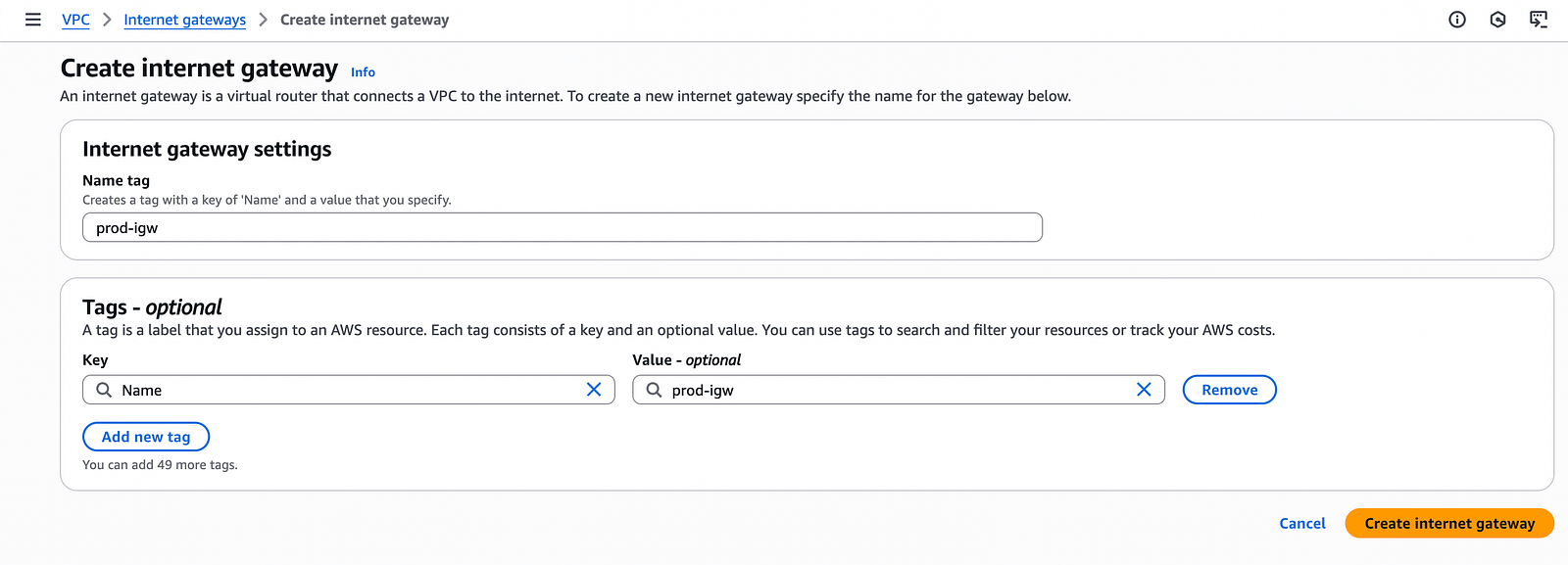

Prod Internet Gateway Creation

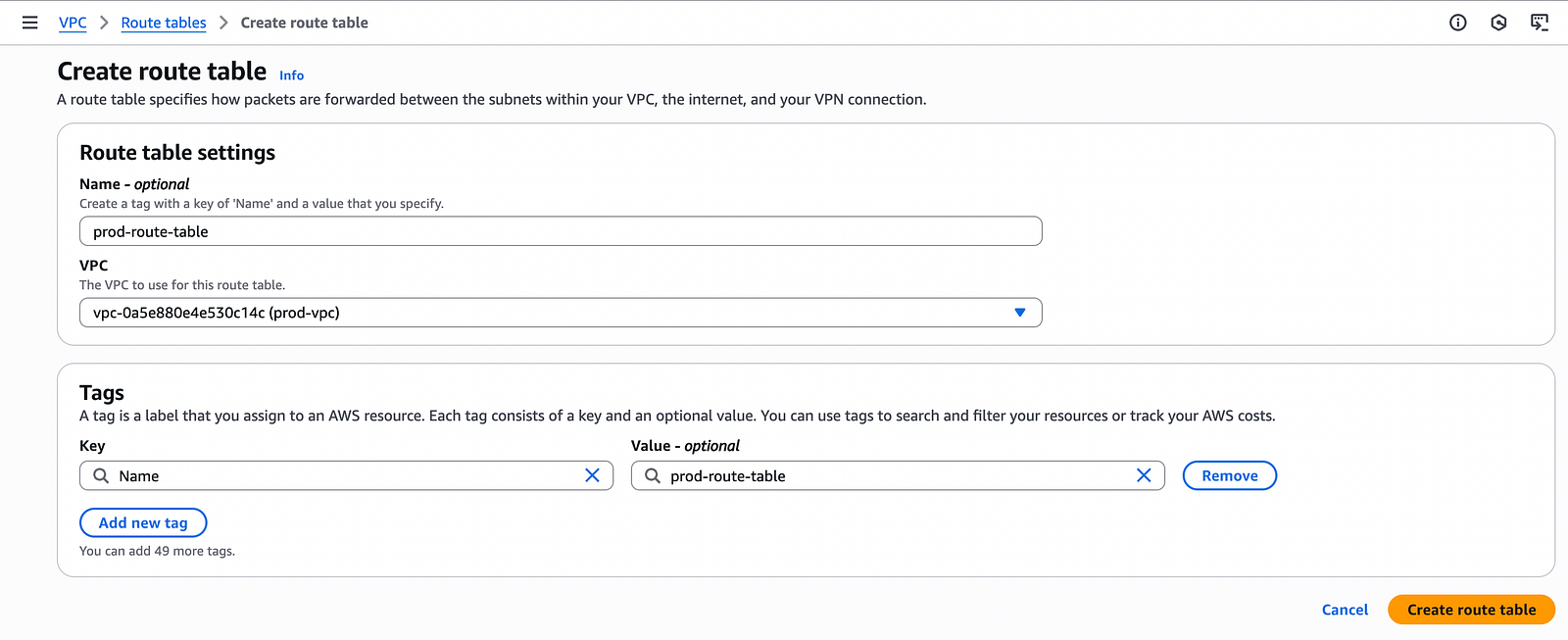

Prod Route Table Creation

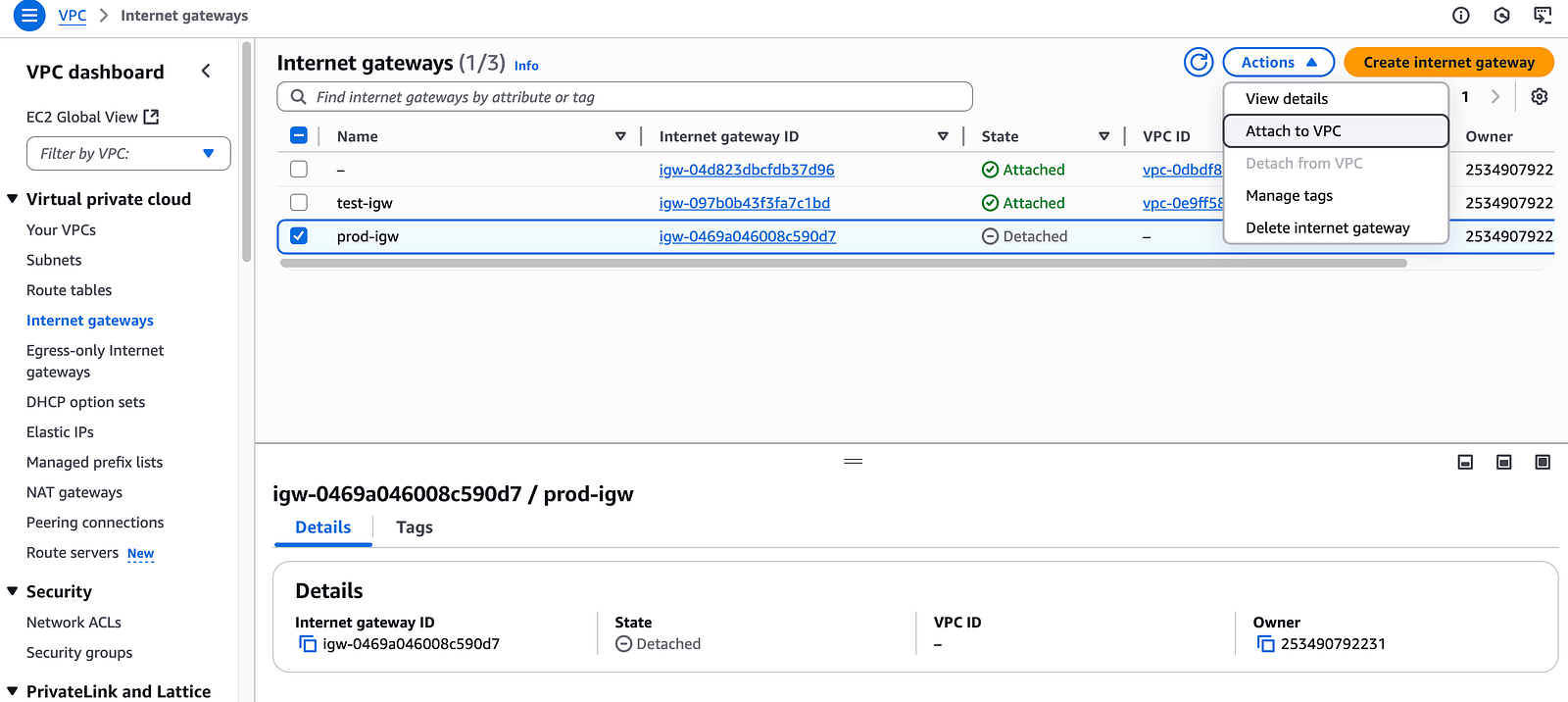

Until we don’t attach our Internet Gateway to the VPC is will not show us on route table

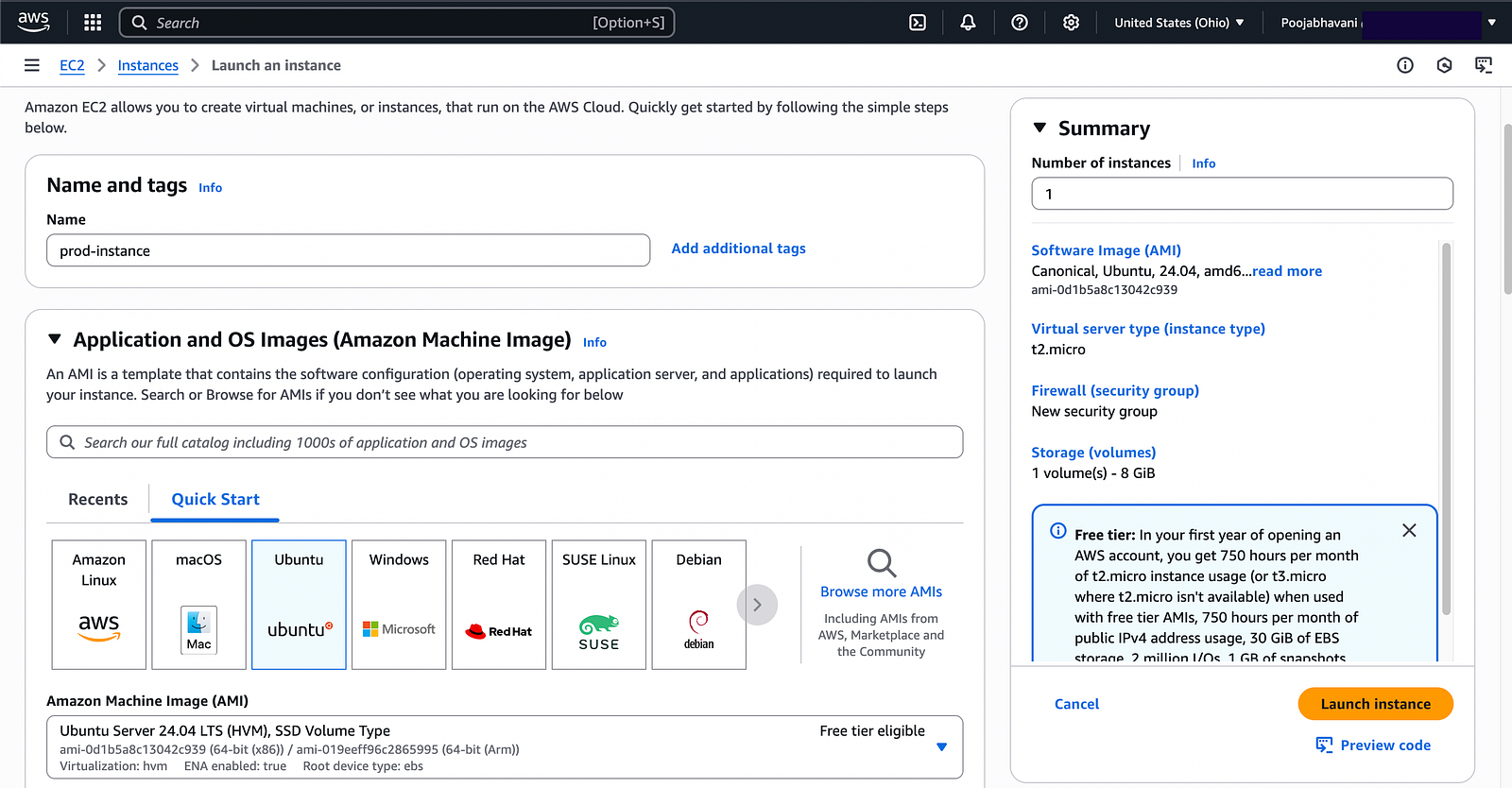

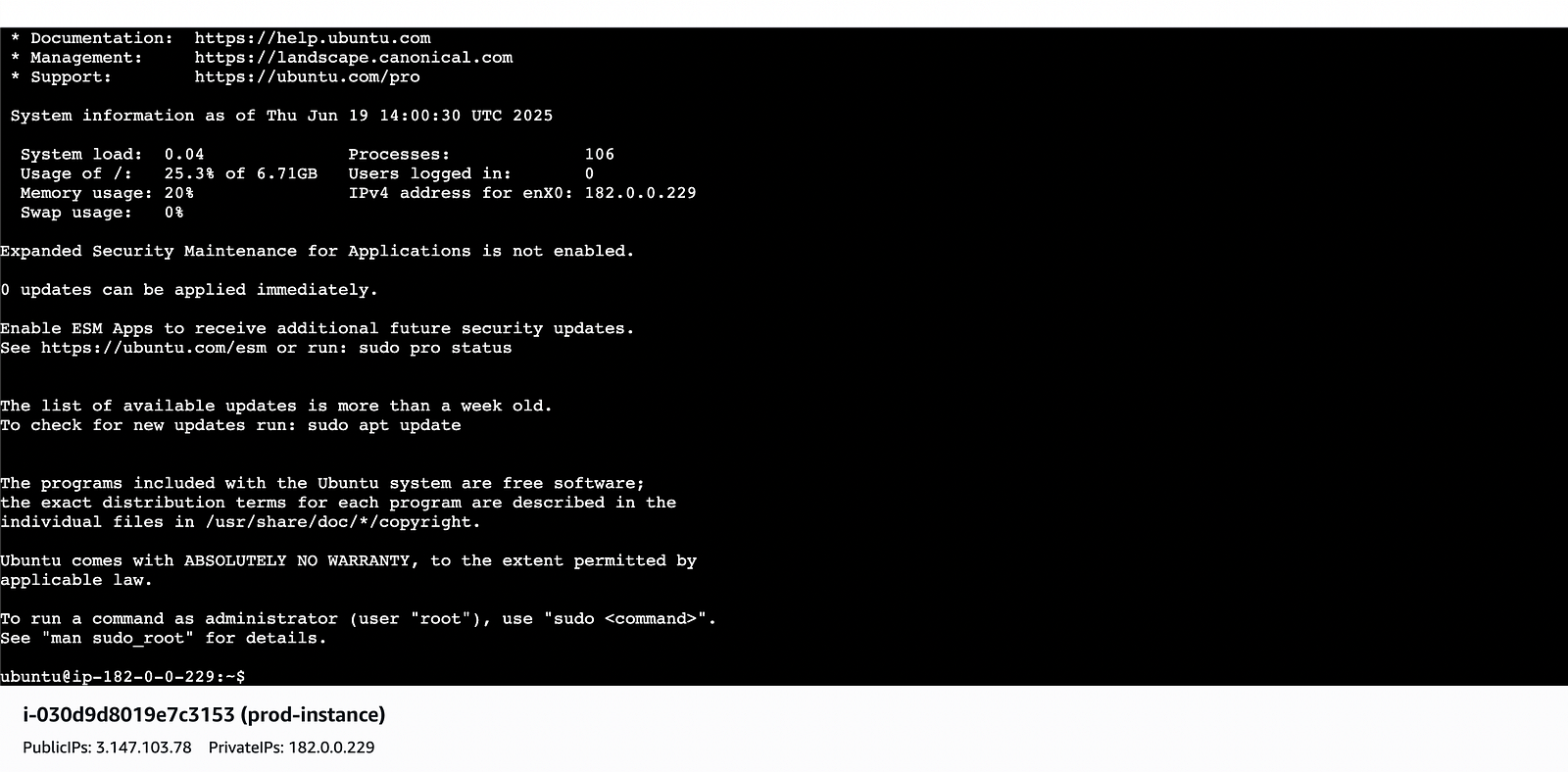

Prod EC2 Creation

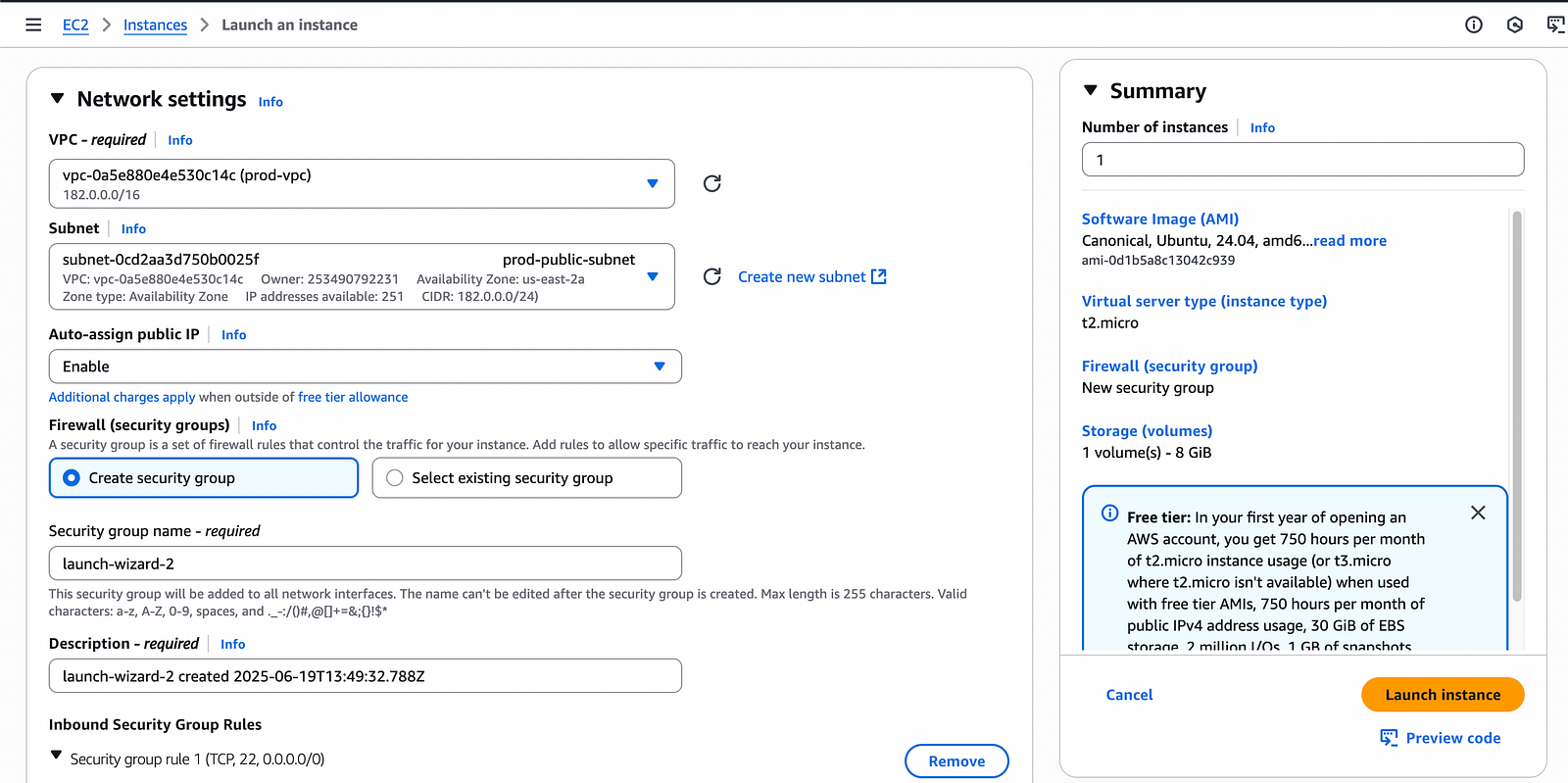

Created and EC2 Instance and attached it to prod-vpc
Now I have created a test-vpc and prod-vpc and I want to prod-EC2 Instance to ping Test-EC2 Instance
Ping — means can one instance transfer data to another instance or not to test that we ping.

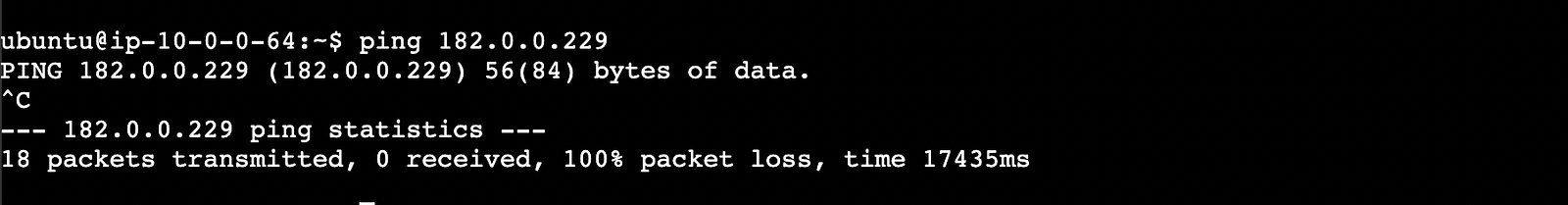

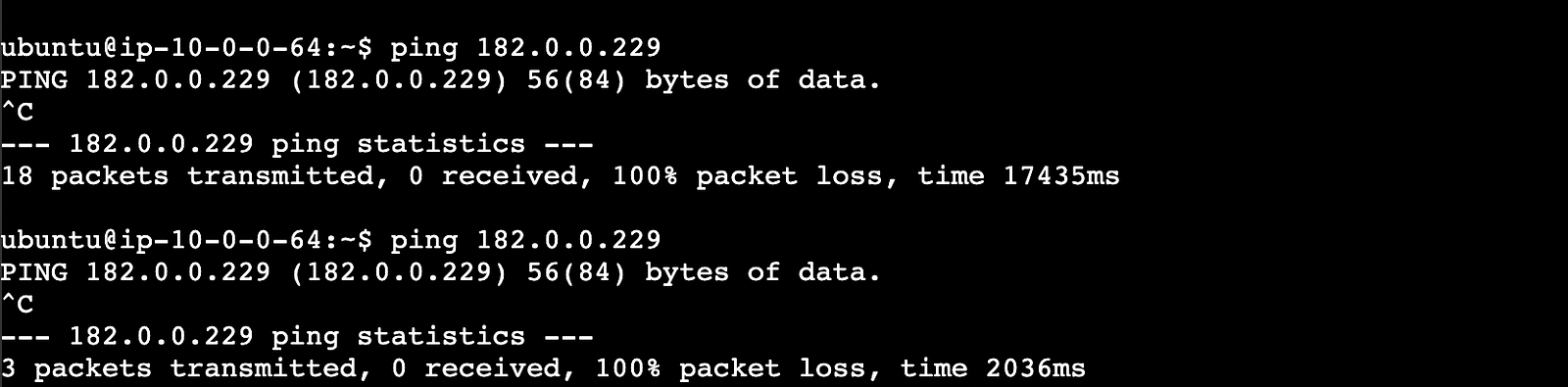

In test instance I will ping prod instance private ip and see
It didn’t recieve any data in this case we need to VPC Peering.

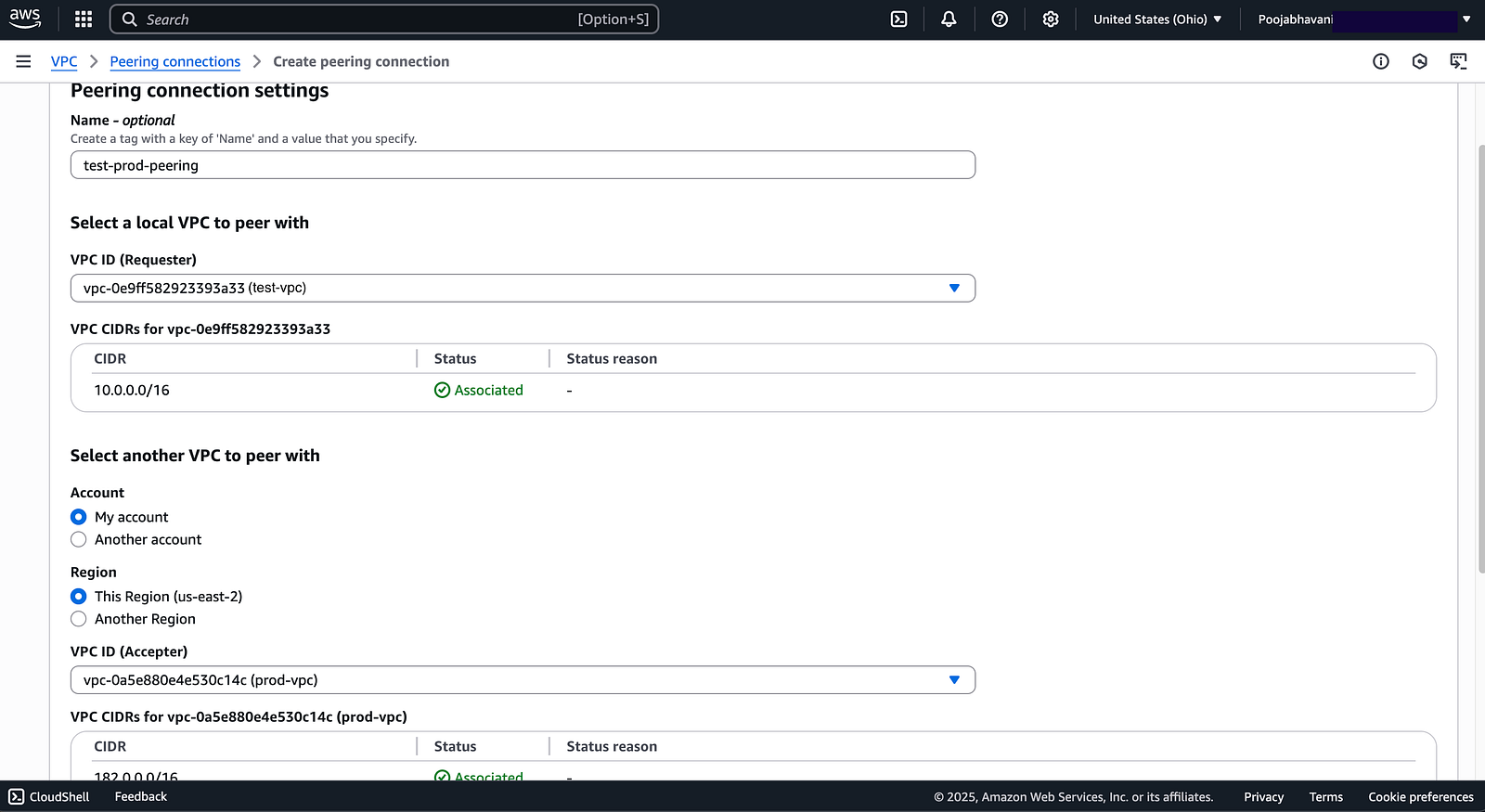

VPC Peering
VPC Peering is used to establish communication between two VPC’s
So, that one VPC can communicate with another VPC

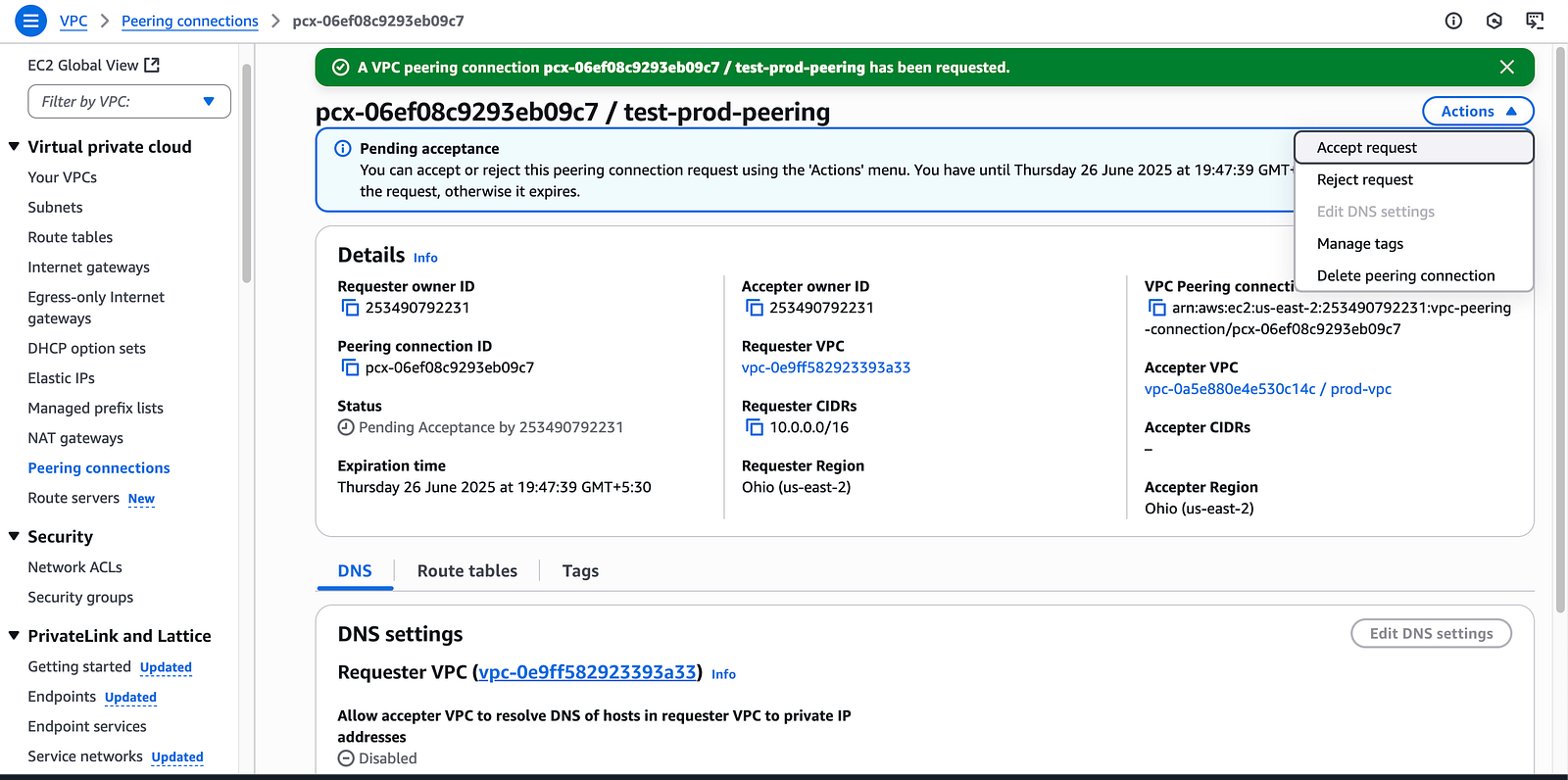

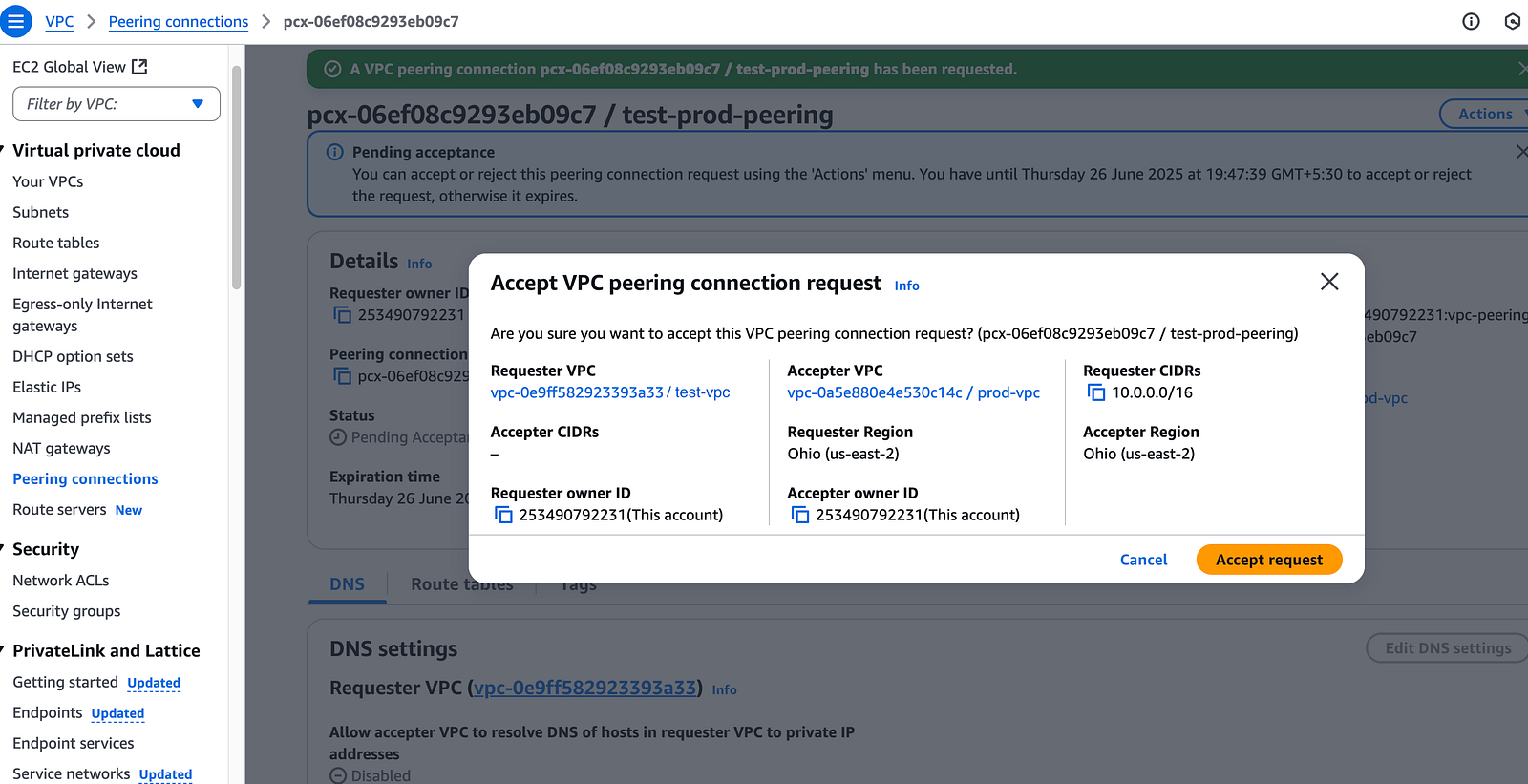

Until I accept the request, communication is not possible.
Still the ping fails Why because we have to edit the route table

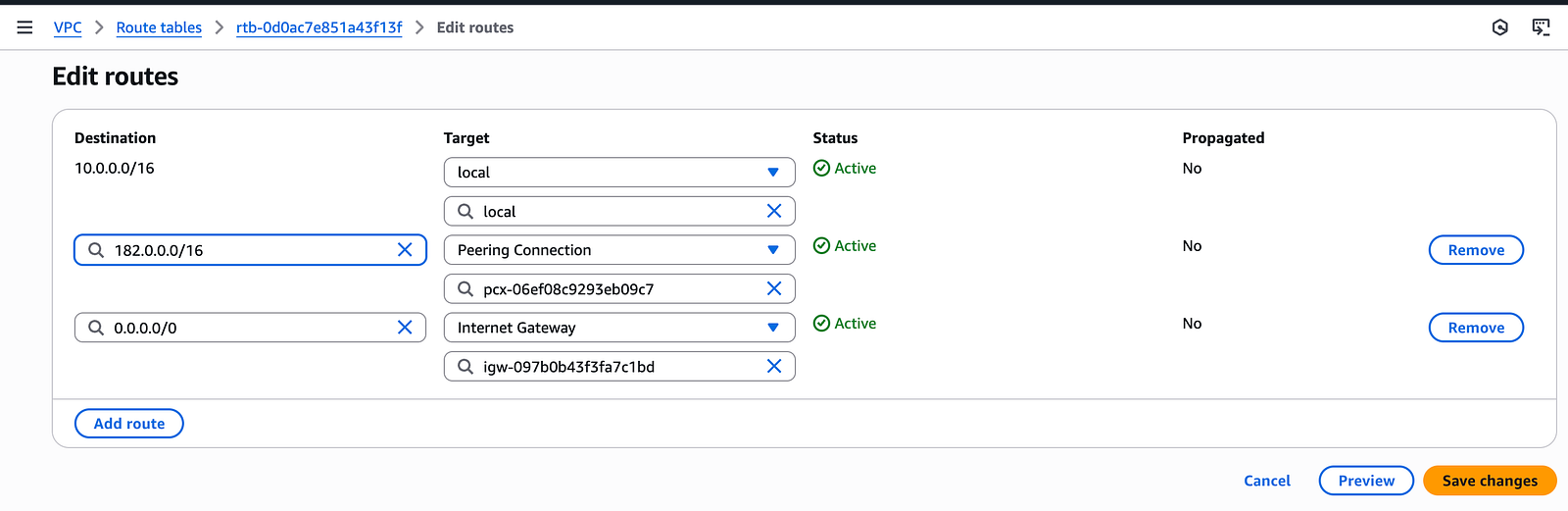

In test route table will put prod peering

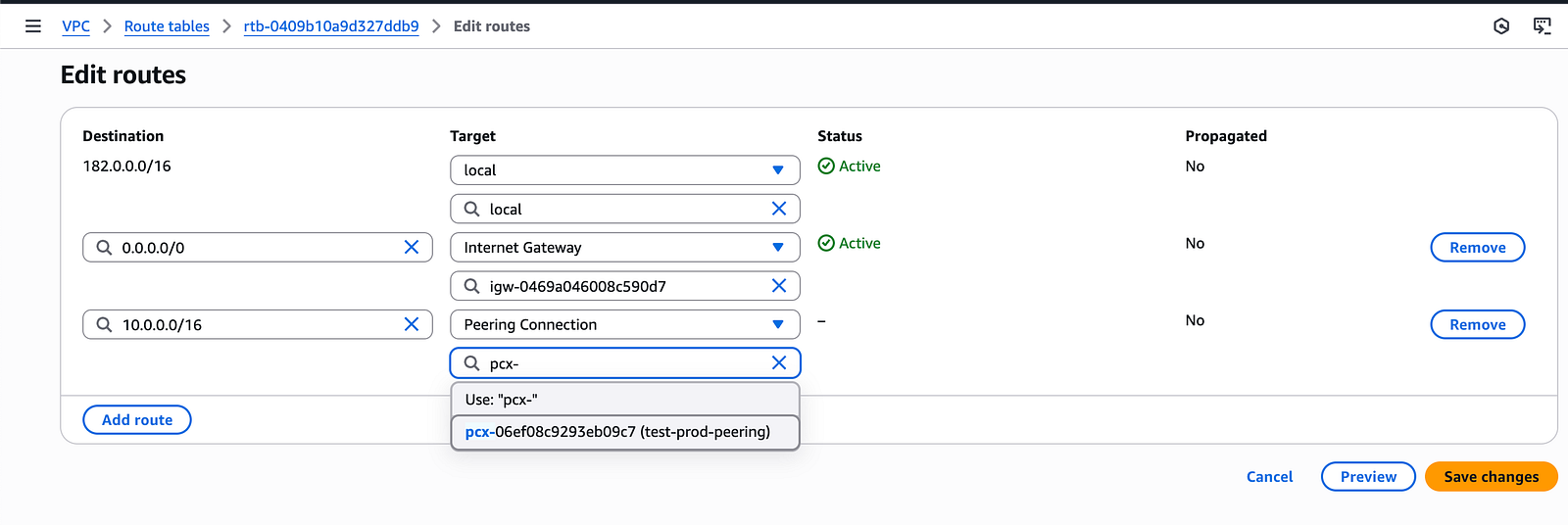

Same will do in prod route table will put test peering

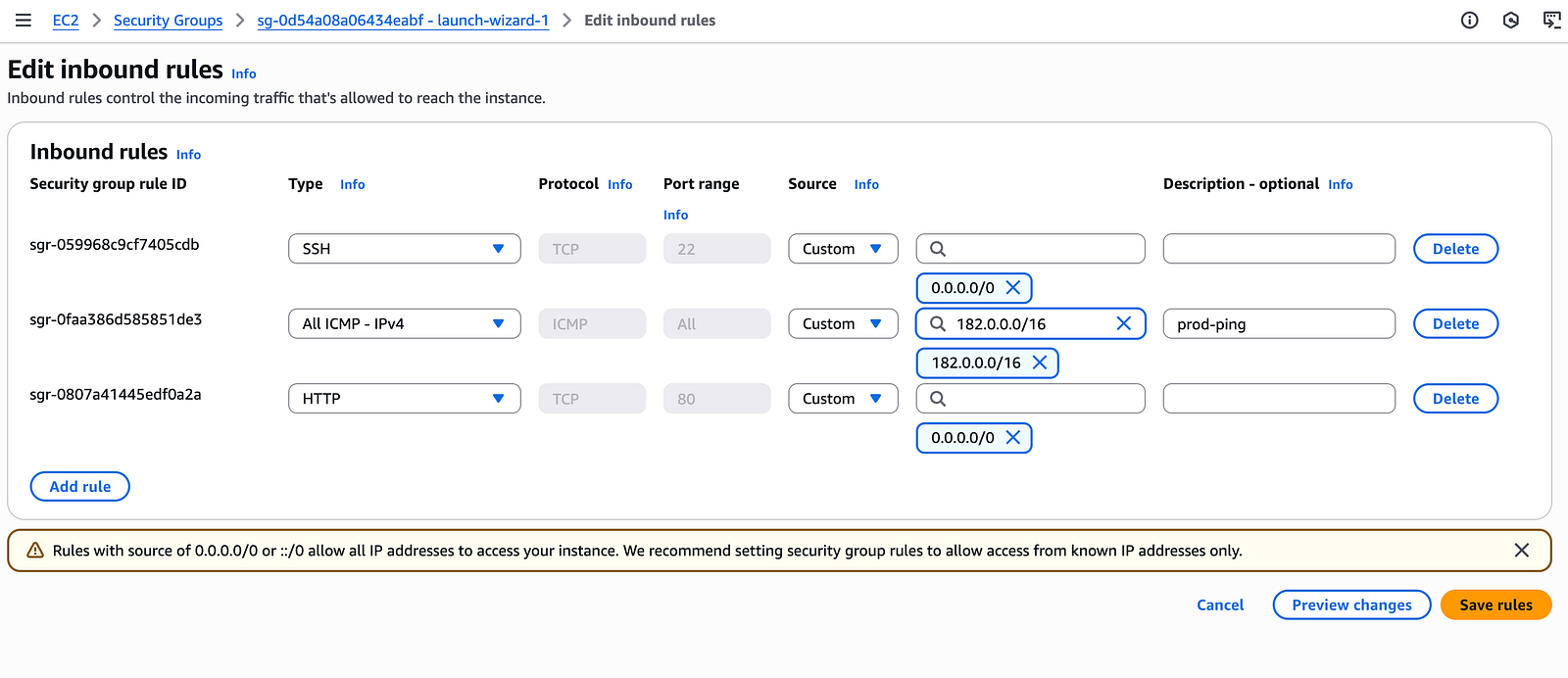

Still the ping fails Why Because now we need to edit Security Group of both instances

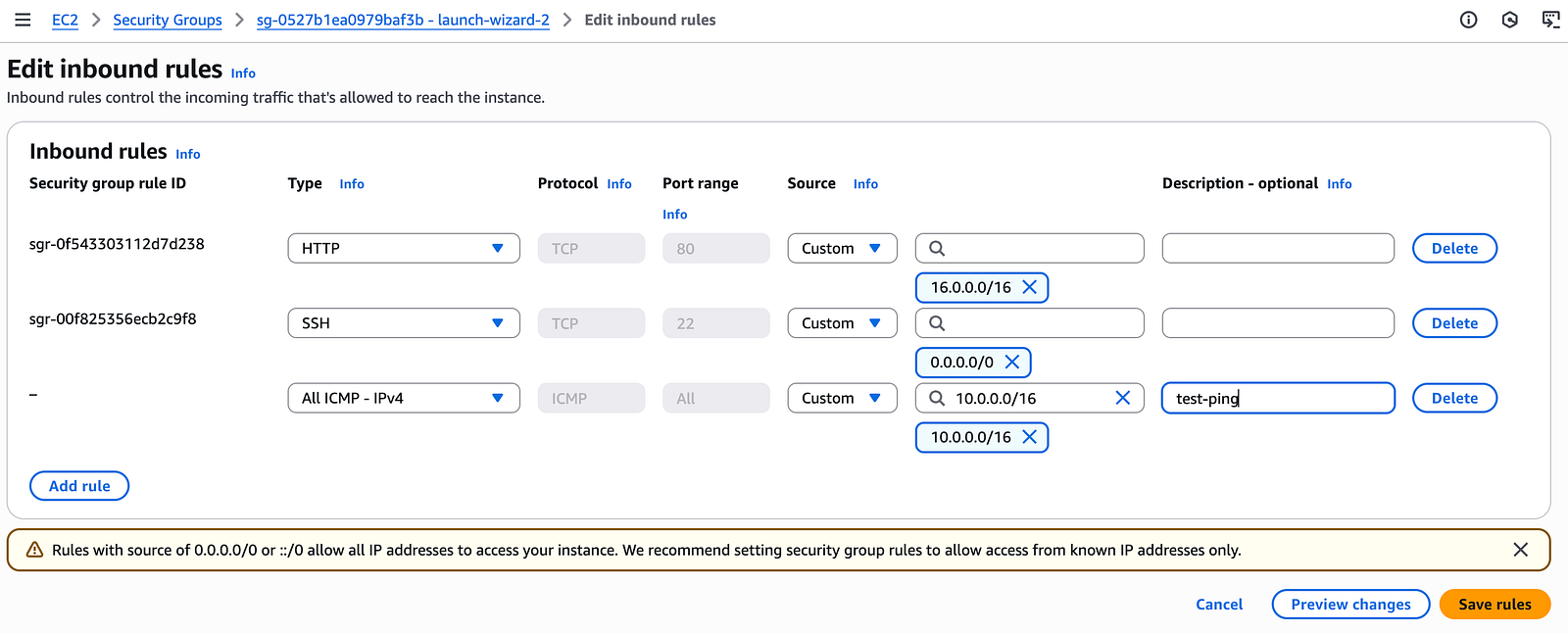

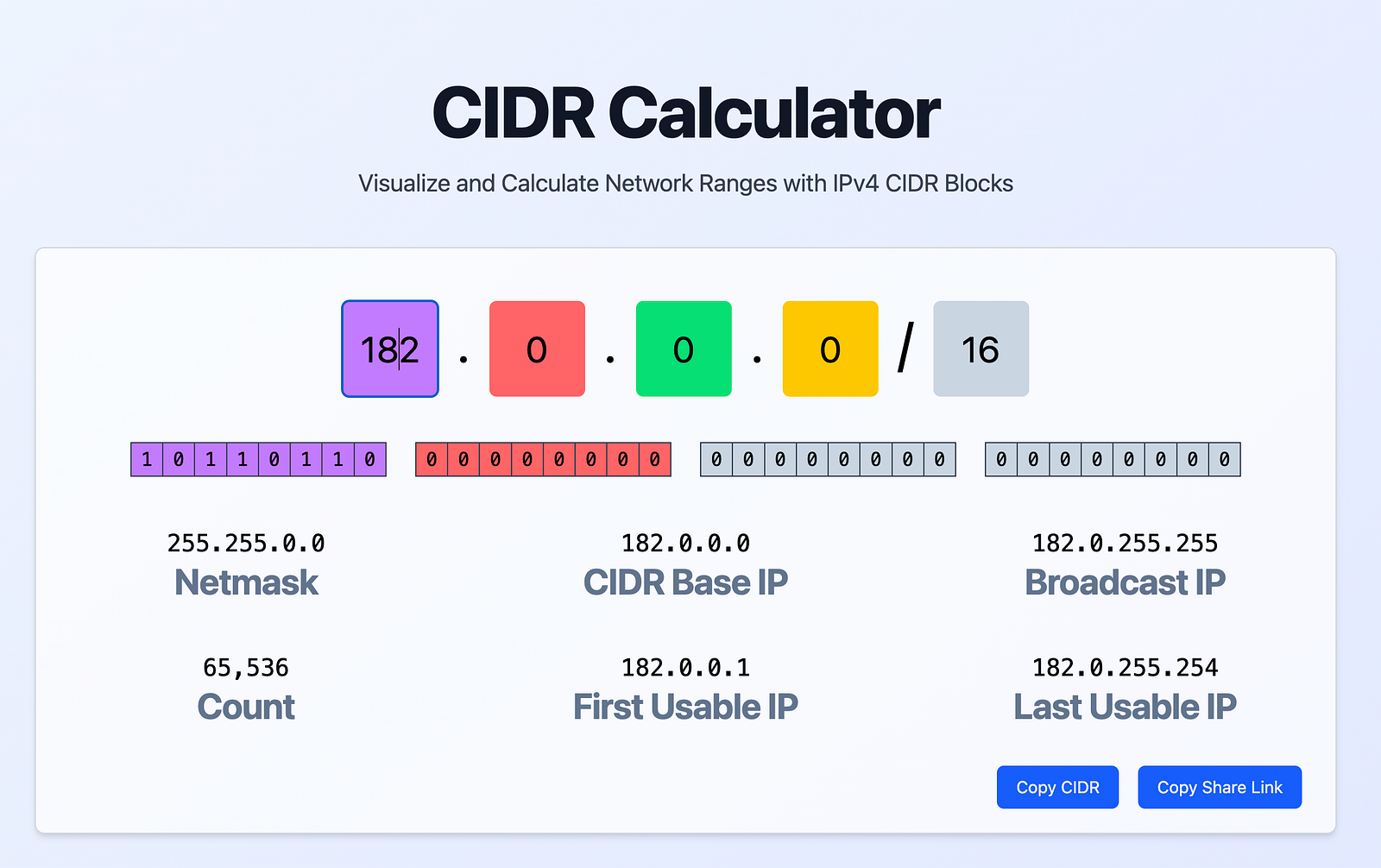

In test Instance security group will put prod CIDR range
Same In prod Instance security group will put test CIDR range

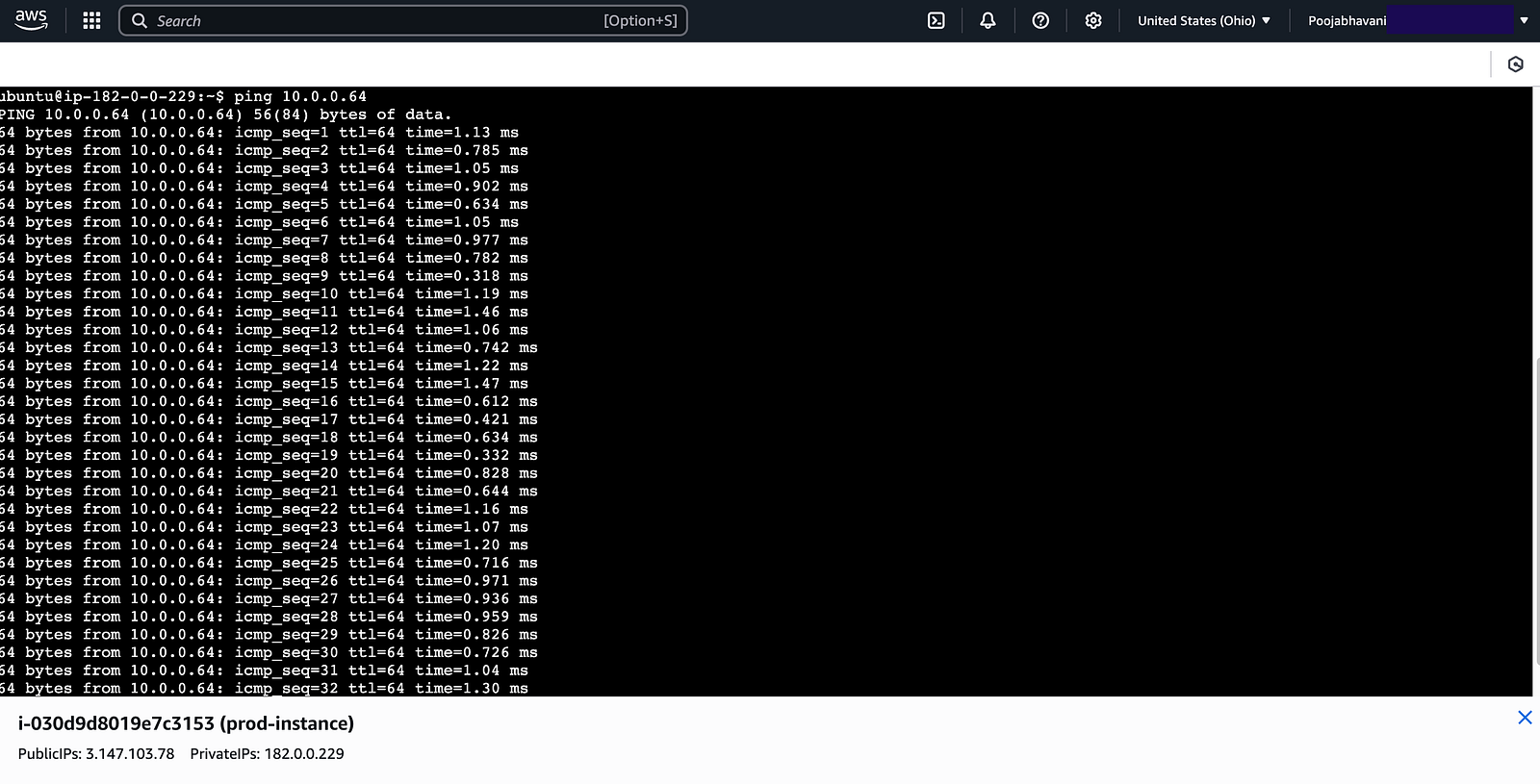

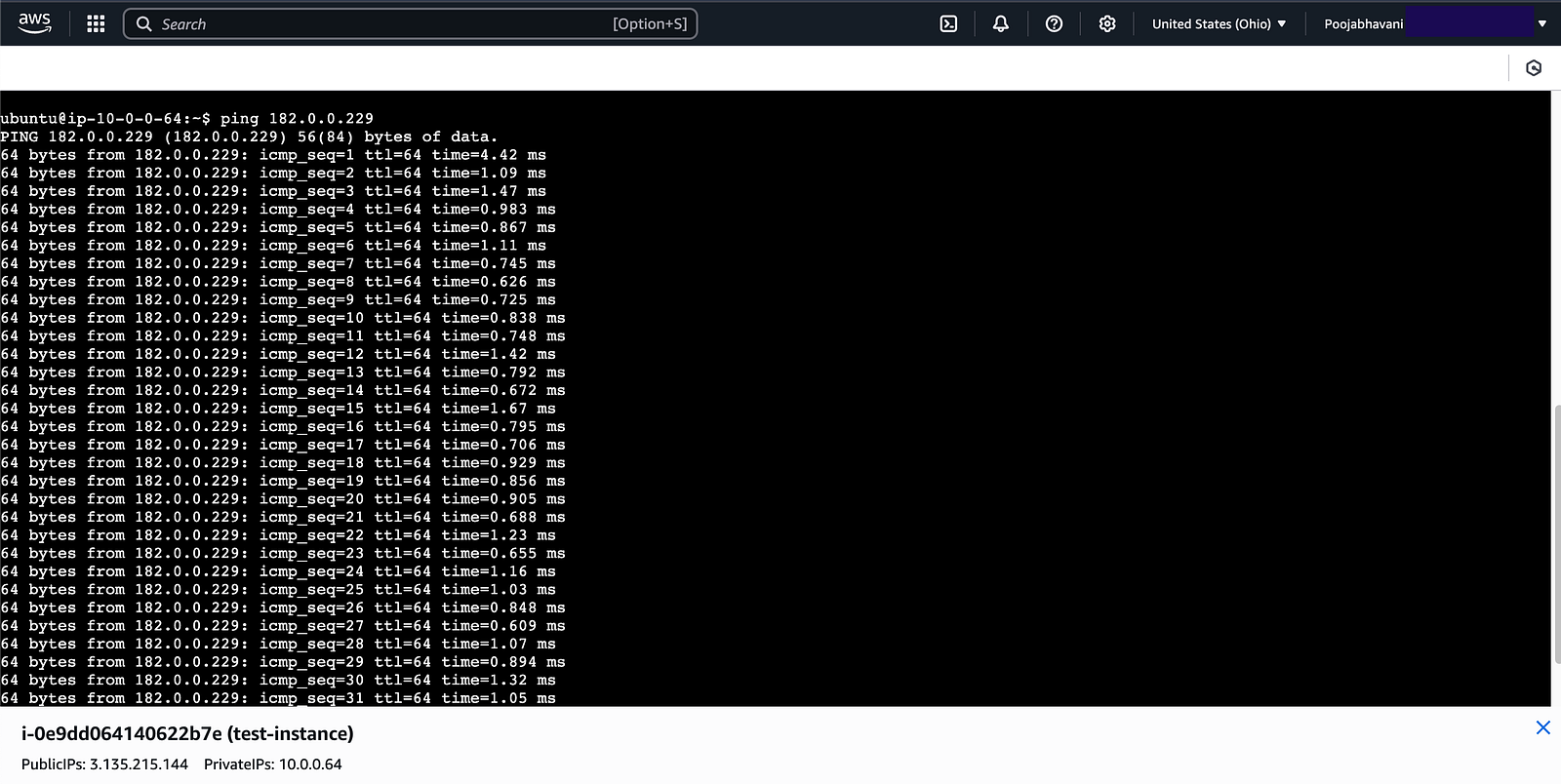

If I ping prod instance from test instance the request starts coming
Same If I ping test instance from prod instance the request starts coming

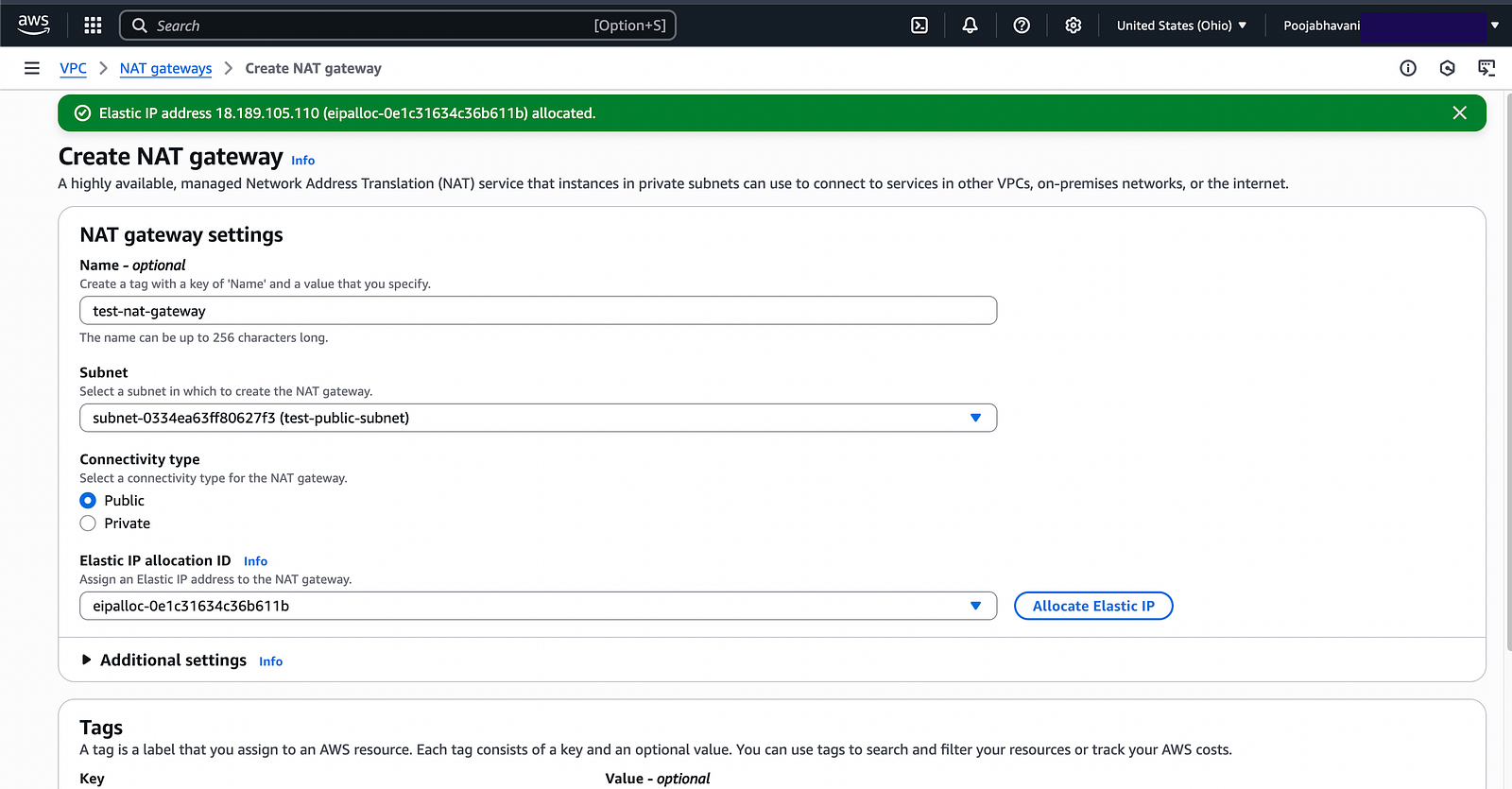

Creation of NAT (Network Address Translation) Gateway

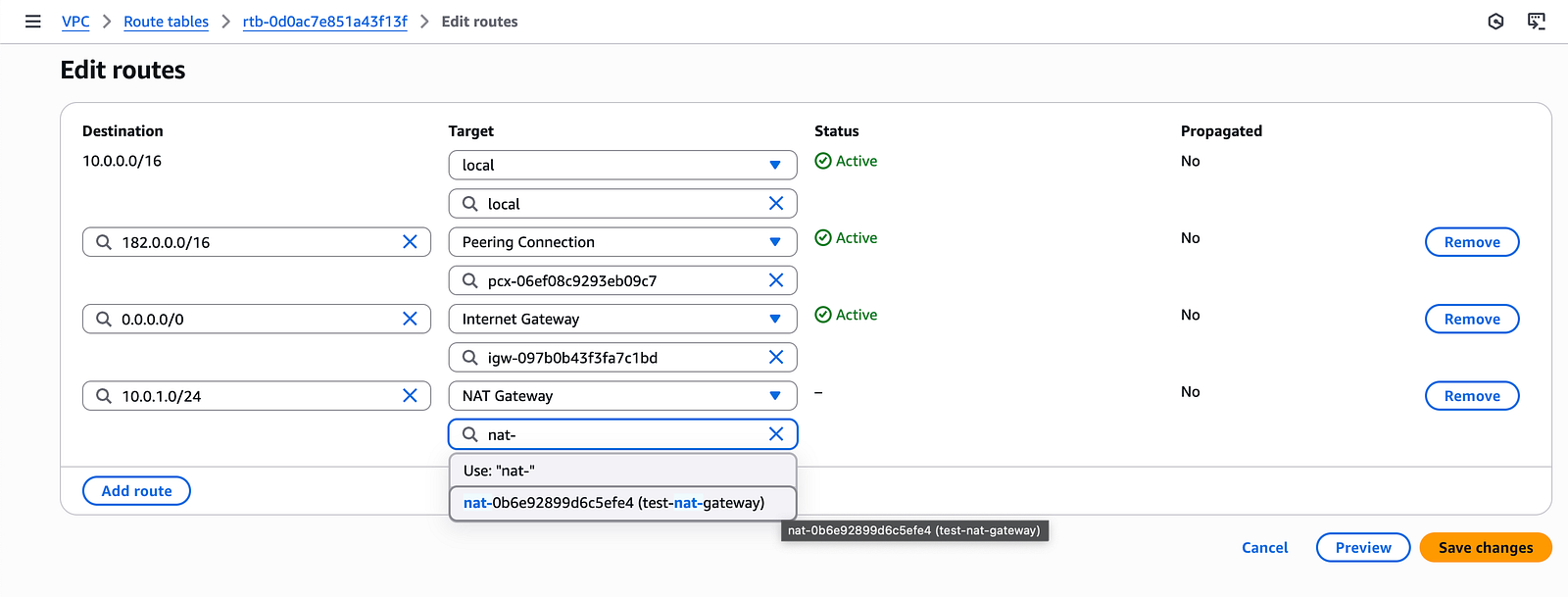

Edit test route table and put NAT Gateway Route
Now this means the public subnet has NAT gateway which can access the private subnet.
